Industrial Personnel Lift with Tilt Action

Vertical Assembly Station

Solution:96622
ModelCV1421-50X:
Industry:Power-Generation
Type:Vertical Assembly Station
Actuation:Mechanical
Capacity:5,000 lbs
Length248
Width168

Overview

This industrial personnel lift with tilt/upender component acts as a vertical assembly station to assemble large industrial fuel cells in the Energy industry. This is a custom design/build material handling solution for a new model of large scale fuel cells developed to vertically stack the components.

Personnel Lift Features

  • Lowered Height: 68″; Vertical Travel: 179″; Raised Height: 247″
  •  Both sections of the platform cut-out include manually actuated sliders to adjust the opening width to close the gap between the platform, fuel cell, and Tilter (Upender)
  • Rise / lower speed: approximately 3/4″ per sec.
  • Lift actuation by 4 bevel-ball screw jacks powered by 2 mechanically synchronized gear motors with integral brakes.
  • Includes bellows for ball screws.
  • Platform includes handrails around the perimeter, with removable handrail sections
    around cut-out.
  • Platform includes four (4) 120VAC outlets and two (2) pneumatic quick-connect
    fittings for 100psi air.
  • Operator interface via pushbutton control box on the platform and pushbutton controls on the floor-mounted MCP.
  • Primary voltage 460VAC/3/60.
  • Control voltage 24VDC.
  • Articulating stairway with gates at top and bottom.
  • Platform ladder provided for access to the platform in the lowered position (when
    stairway not used).

Upender (Tilter) Model TL300XS

  • Upender (Tilter) Model TL300XS:
  •  Capacity 30,000 lbs.
  • Upper leg includes a mounting surface for the purchaser’s fixture.
  • Designed for a maximum 210″ fixture length.
  • Lower leg includes 60″ diameter platform which rotates 90 degrees (in vertical
    position only).
  • Platform slides +/- 6 inches. Note: COG of the fuel cell assembly to be no more than 3″ from the axis of rotation of the rotator platform.
  • Upender travels a maximum of 85 degrees from horizontal to working position.
  • The upender tilted 5-15 degrees from vertical during assembly.
  • Tilt actuation is by two hydraulic cylinders.
  • Includes Hydraulic Power Unit.
  • Operator interface via pushbutton controls on the floor-mounted MCP.

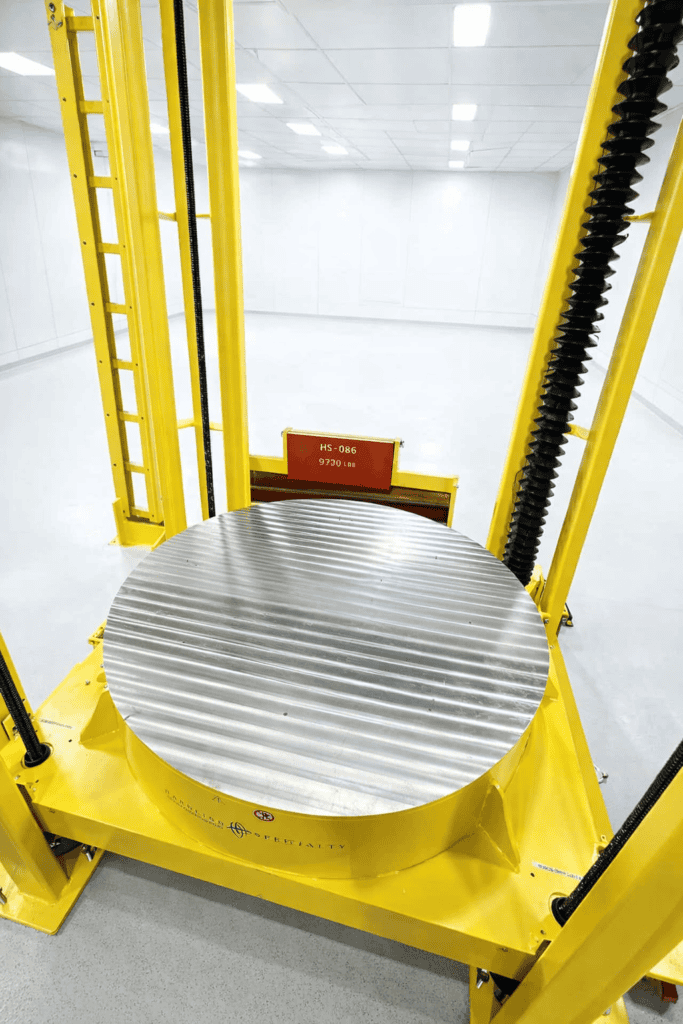

Industrial personnel lift in application
