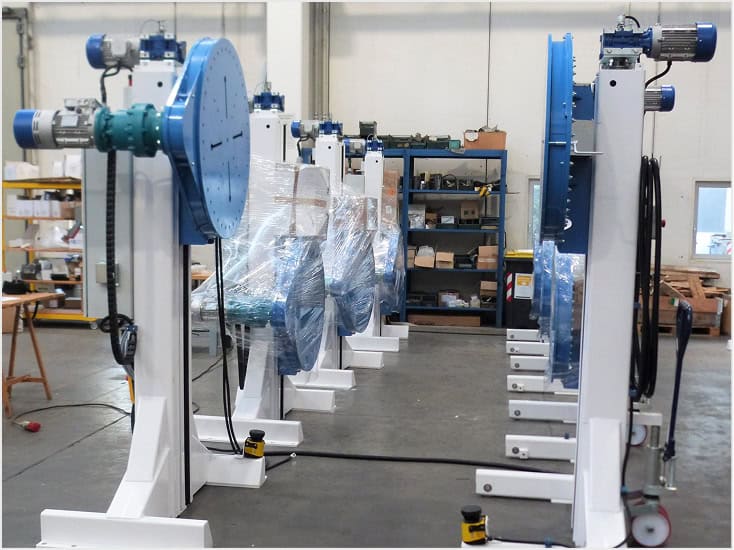

The STF head and tailstock cradle-type is a double column fixed machine a with central saddle, that allows the lifting and the rotation of any kind of frame.
The STF Head and tailstock cradle-type positioners are an excellent solution in applications where the complete rotation of all 3 axis is required to be easily reached during the welding and assembly procedures.
Ergonomic positioners are used during welding and assembly operations of big weldments that are manufactured by companies in all industries. Compared to similar products, Handling’s 3 axis cradle-type positioners feature unique characteristics such as: compact design, flexibility and lightness.
Handling’s column positioners and lifting & turning devices are built according to the customer’s specific needs.
Technical features
- Safety: reduces the need for dangerous movements while operating lifting equipment such as overhead cranes
- Health: welders and operators always maintain the correct posture and reduce fatigue.
- Improved production quality: allow to work at an ideal height and in correct position.
- Increased productivity: lifting and turning products without overhead cranes or ordinary cranes reduces downtimes
- Truck frames and tanks
- Earth moving machines and components
- Railway bogies, train cars and frames
- Automotive and military vehicles
- Agricultural vehicles and machinery
- And many other

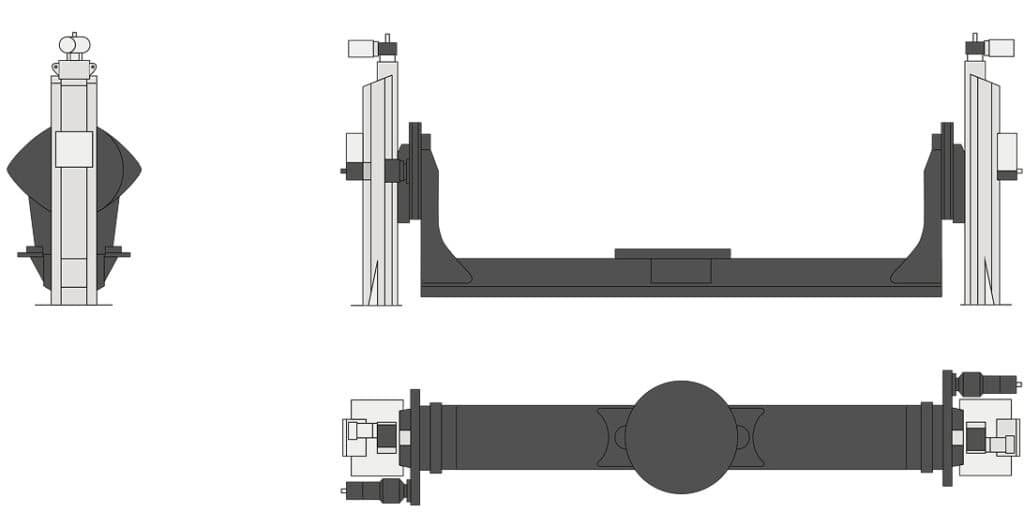

The lifting of the X axis is mechanical, generated by a gear motor and screwnut connected to the loadsupporting device composed of a steel bracket.
The rotation of the Y and Z axis is mechanical, generated by a gear motor coupled with a self-braking motor with speed control via inverter system.
All the controls are on the control unit and on the hand held remote, which are installed on the master column or a wheeled trolley.
Most of the technical features can be customized.
Our positioners can feature for 4.0 Industry.
