STR /1 – Headstock Only Positioners
STR /1 – Headstock Only Positioners

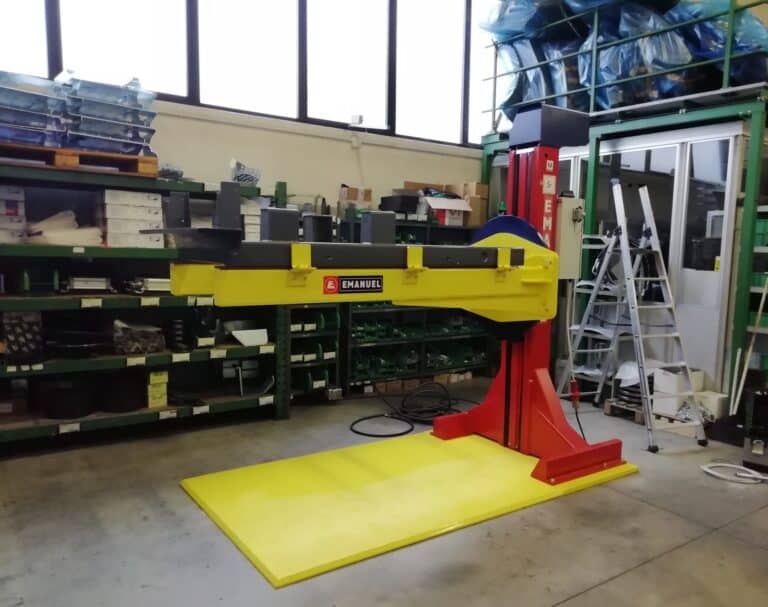

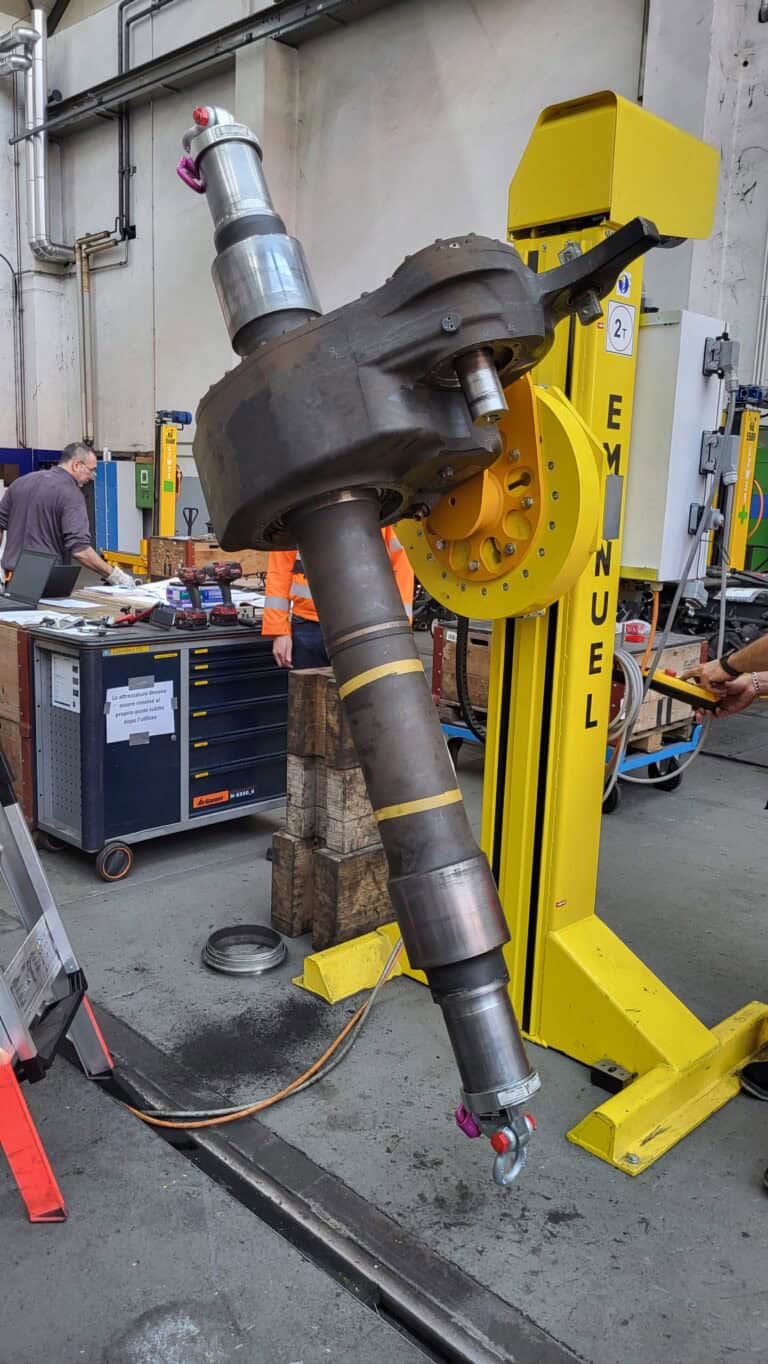

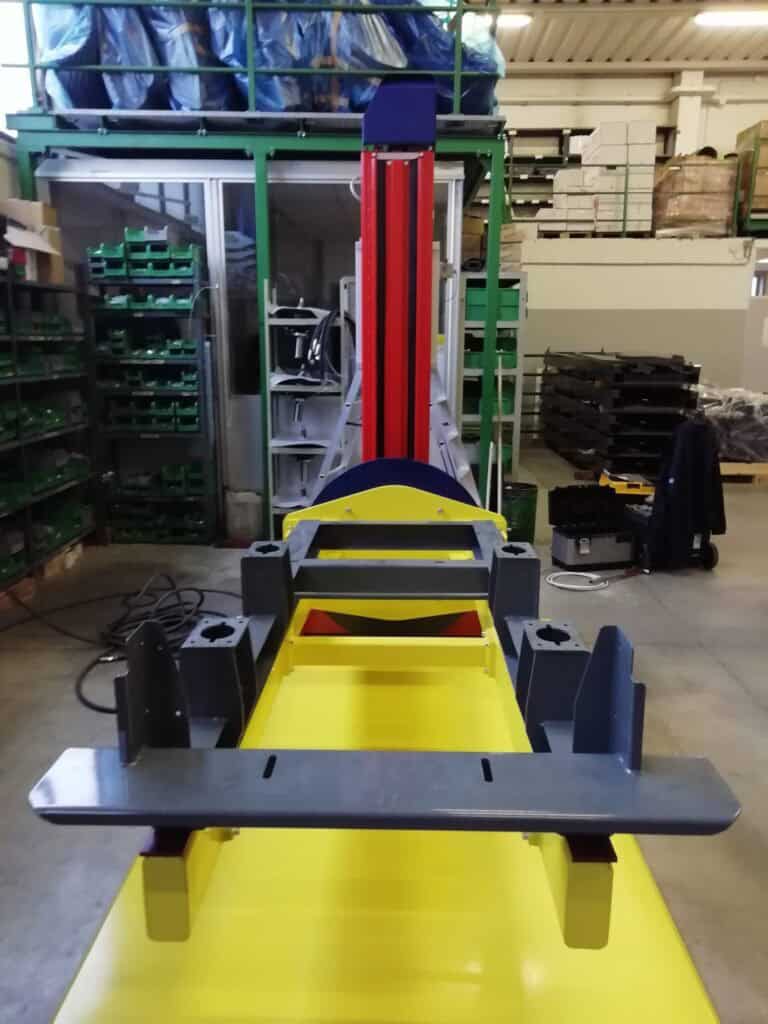

The STR /1 is a Headstock Only / Single Column positioner that allows the lifting and the rotation of any kind of weldment. Ergonomic positioners that used during welding and assembly operations of big weldments that are manufactured by companies of all sectors.
Compared to similar products, Handling ergonomic positioners feature unique caractestictis such as: compact design, flexibility and lightness. Our models start from a lifting capacity of 1 Ton up 15 Tons. The STR /1 positioner is also available in the HEAVY DUTY SWR /1 version, with enhanced performance and increased lifting capacity.

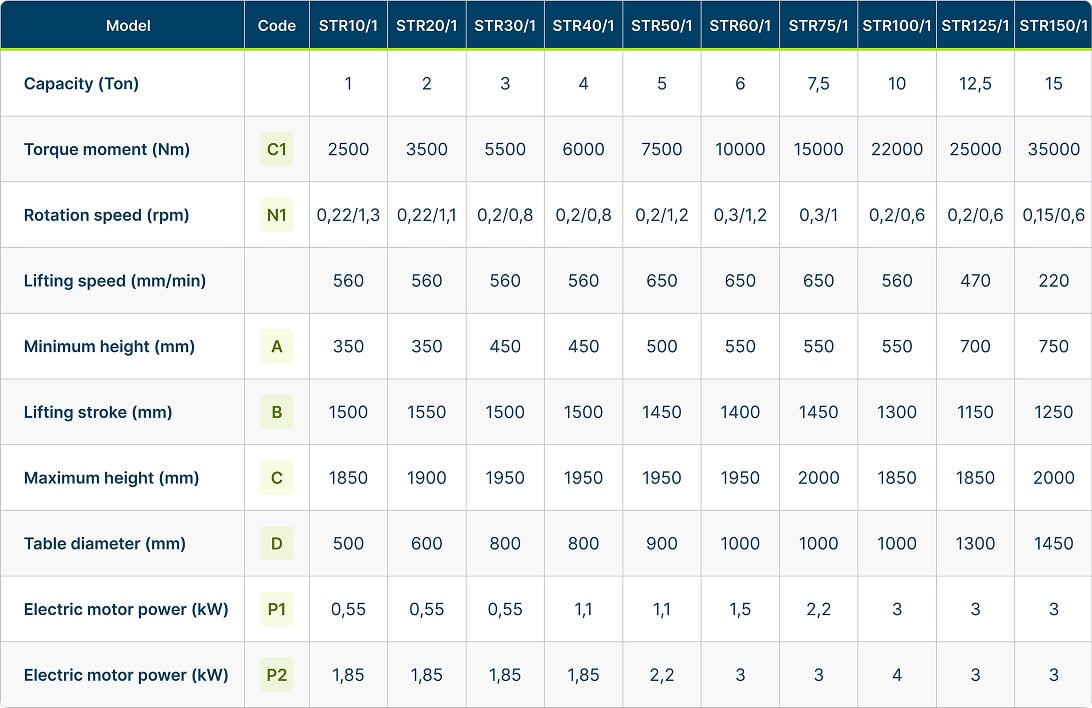

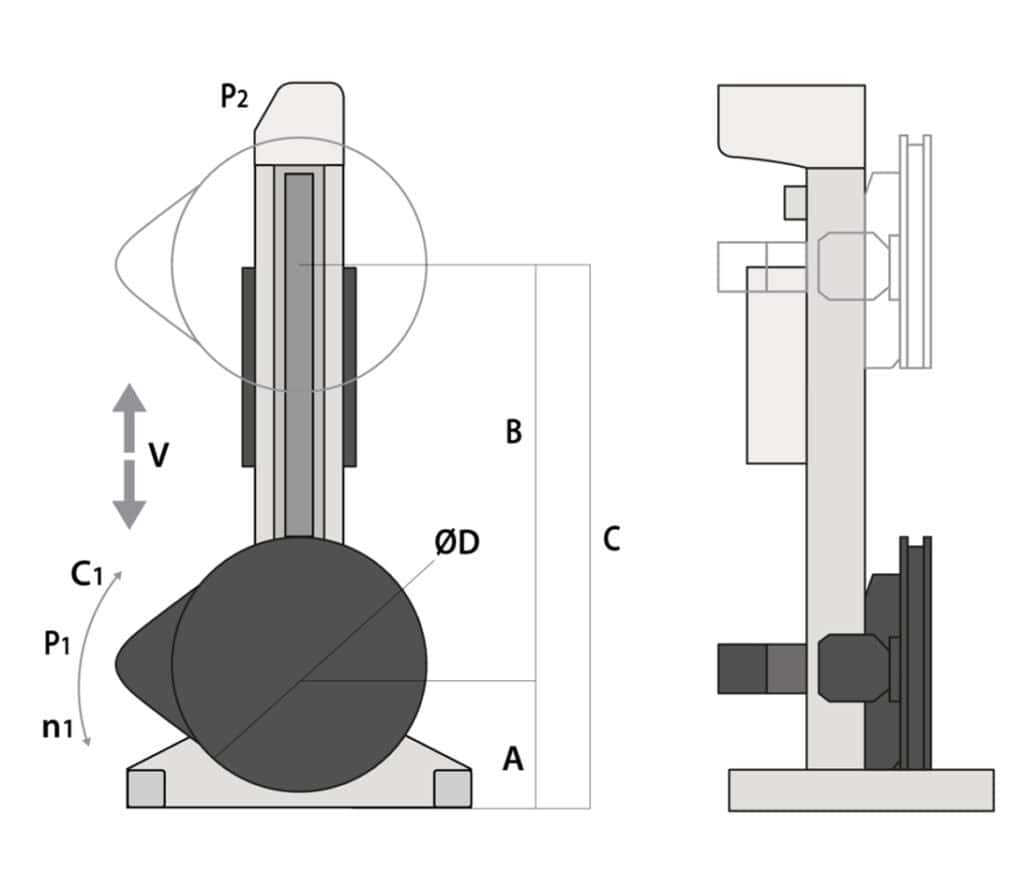

Technical features

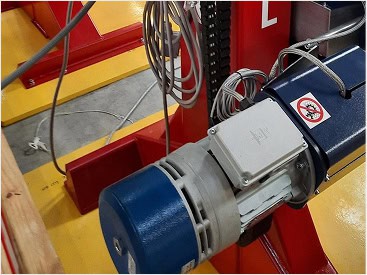

The lifting of the X axe is mechanical, generated by a gear motor and screwnut connected to the load supporting device composed of a steel bracket. The rotation of the Y axe is mechanical, generated by a gear motor coupled with a self-braking motor with speed control via inverter system.

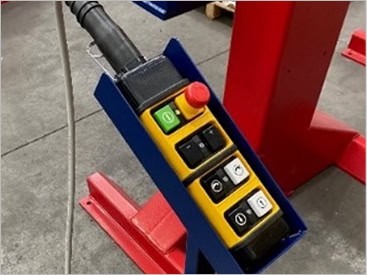

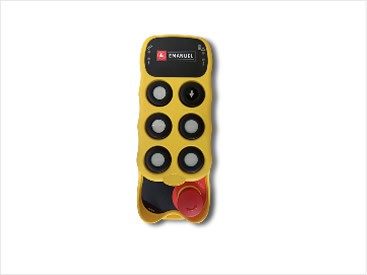

All the controls are on the control unit and on the handheld remote, which are both installed on master column. Handling head and tailstcok positioners are built according to the customer’s specific needs.
- Safety: reduces the need for dangerous movements while operating lifting equipment such as overhead cranes
- Health: welders and operators always maintain the correct posture and reduce fatigue.
- Improved production quality: allow to work at an ideal height and in correct position.
- Increased productivity: lifting and turning products without overhead cranes or ordinary cranes reduces downtimes
- Truck frames and tanks
- Earth moving machines and components

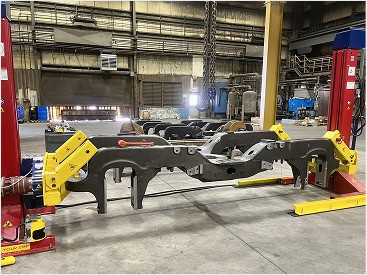

- Railway bogies, train cars and frames
- Automotive and military vehicles
- Agricultural vehicles and machinery
- And many other
Versions available that feature only rotation or only lifting.
The STR /1 positioner is also available in the HEAVY DUTY SWR /1 version, with enhanced performance and increased lifting capacity.
