Bogie/Truck Maintenance Station
Bogie/Truck Maintenance Station
Custom designed and built to lift bogie trucks for inspection and maintenance.
| Solution: | 5556 |
| Industry: | Rail Transit MRO and Manufacturing Solutions |
| Model: | TS-02 |
| Type: | Multi Stage Lift |
| Actuation: | Mechanical |
| Dimensions: | 216" × 143" × 128" |
| Travel: | 72" |
| Capacity: | 22,000 lbs |
Overview

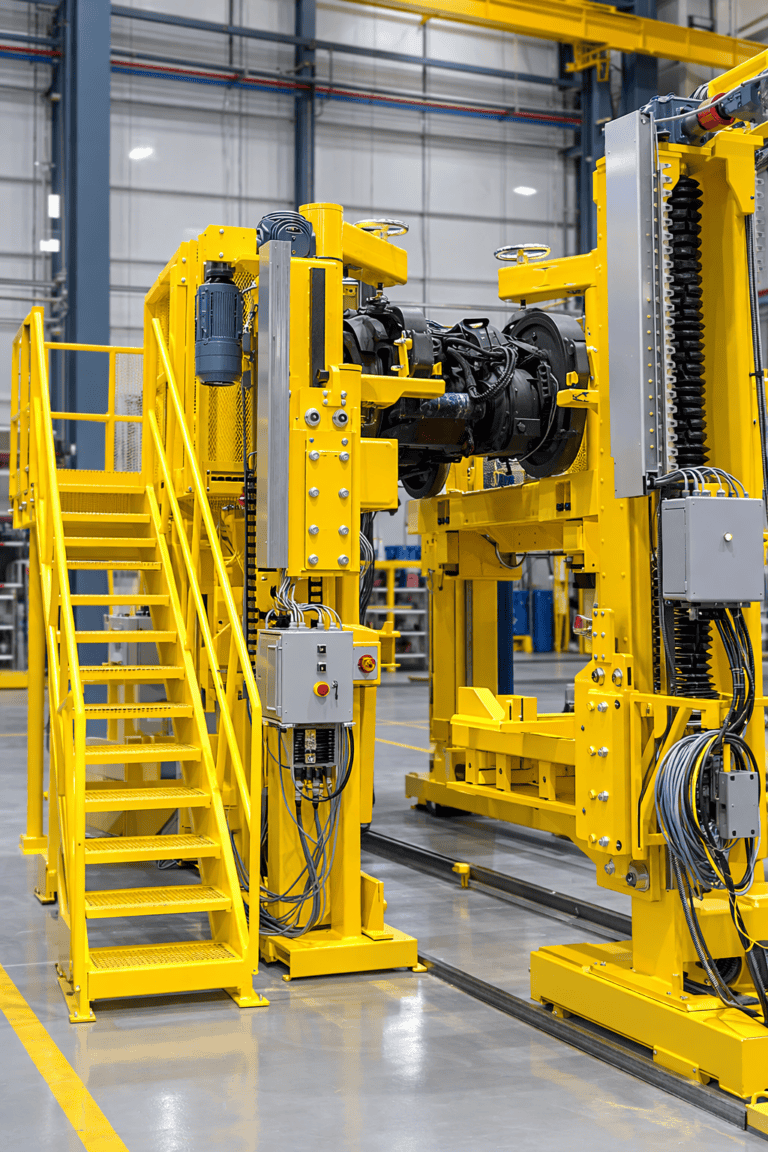

This customized Bogie/Truck Maintenance Station is used to replace traction motors and wheelsets on Rail bogies. Rail maintenance is an important part of keeping a fleet operating safely and efficiently.
Features
This rail maintenance system is feature-rich. Examples below.
Examples below.
- Four Clamp Arms to secure equipment in place
- Four support arm locking pins
- Four control panels including one Master with HDMI screen
- Limit Switches
- Overtravel Limit Switches
- Four handheld pendants
- Two work platforms
- Two articulating staircases
- Two Jacks traverse on tracks
