Custom Three-Axis Work Positioner

Custom three-axis work positioners can be an important part of an assembly and MRO facility to assist in precise positioning. Specialized tooling to hold your product in place can be engineered to your unique requirements.

Solution:	5349
Industry:	Aerospace & Defence Material Handling Equipment
Type:	Vertical Assembly Station
Actuation:	Mechanical
Dimensions:	324" × 240" × 192"
Travel:	144"
Capacity:	4,500 lbs

Overview

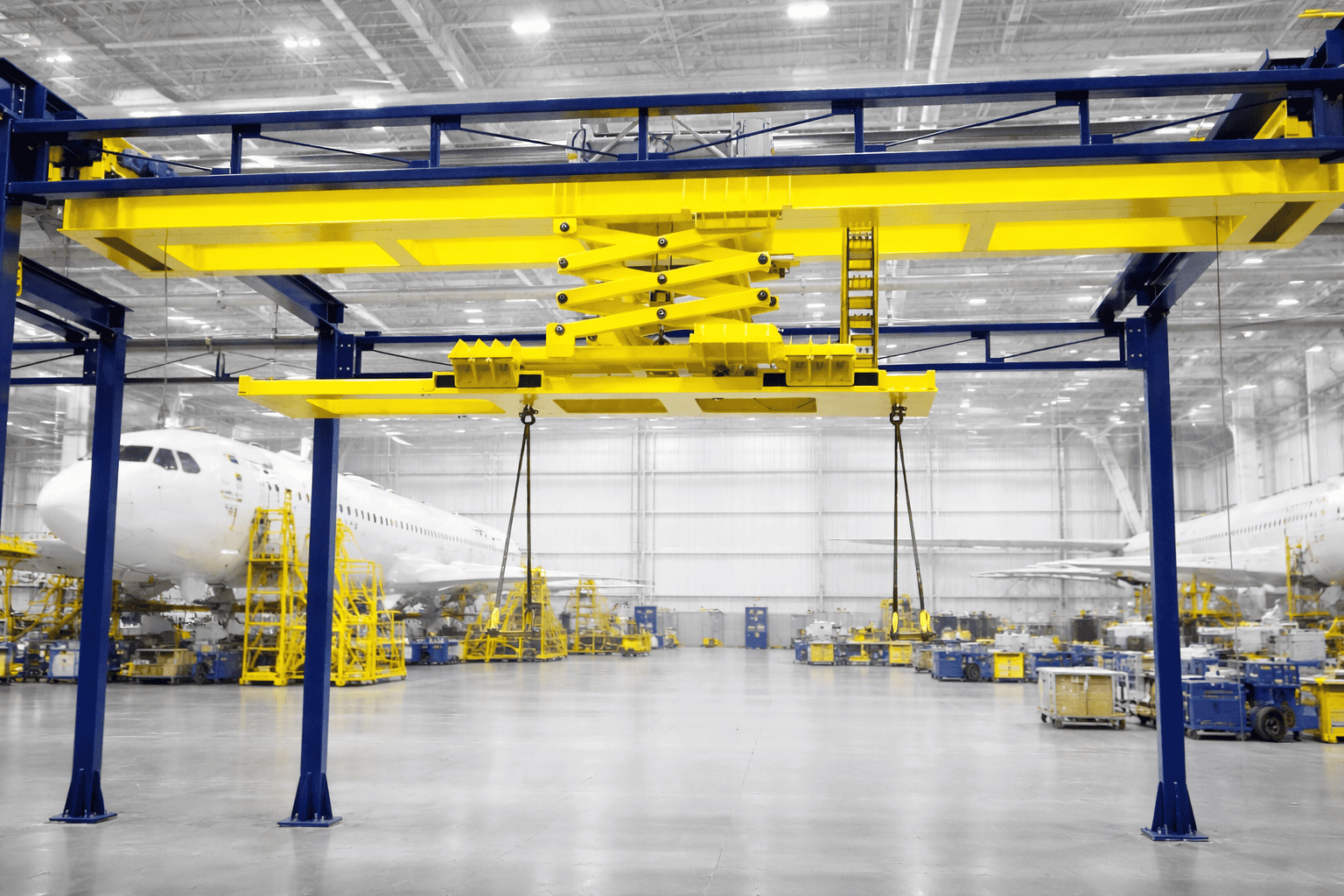

Four custom three-axis work positioners are bolted to the facility floor to perform intermittent operations of three transfers per day per positioner, 262 days of operation per year. The robust four-post lifts offer multiple positioning opportunities for technicians performing their assembly and maintenance work.

The Z-axis moves the product up and down via an electro-mechanical top-mounted hoist & stabilizing scissor assembly. The X-axis is powered by end trucks, while the Y-axis uses a powered jack assembly.
