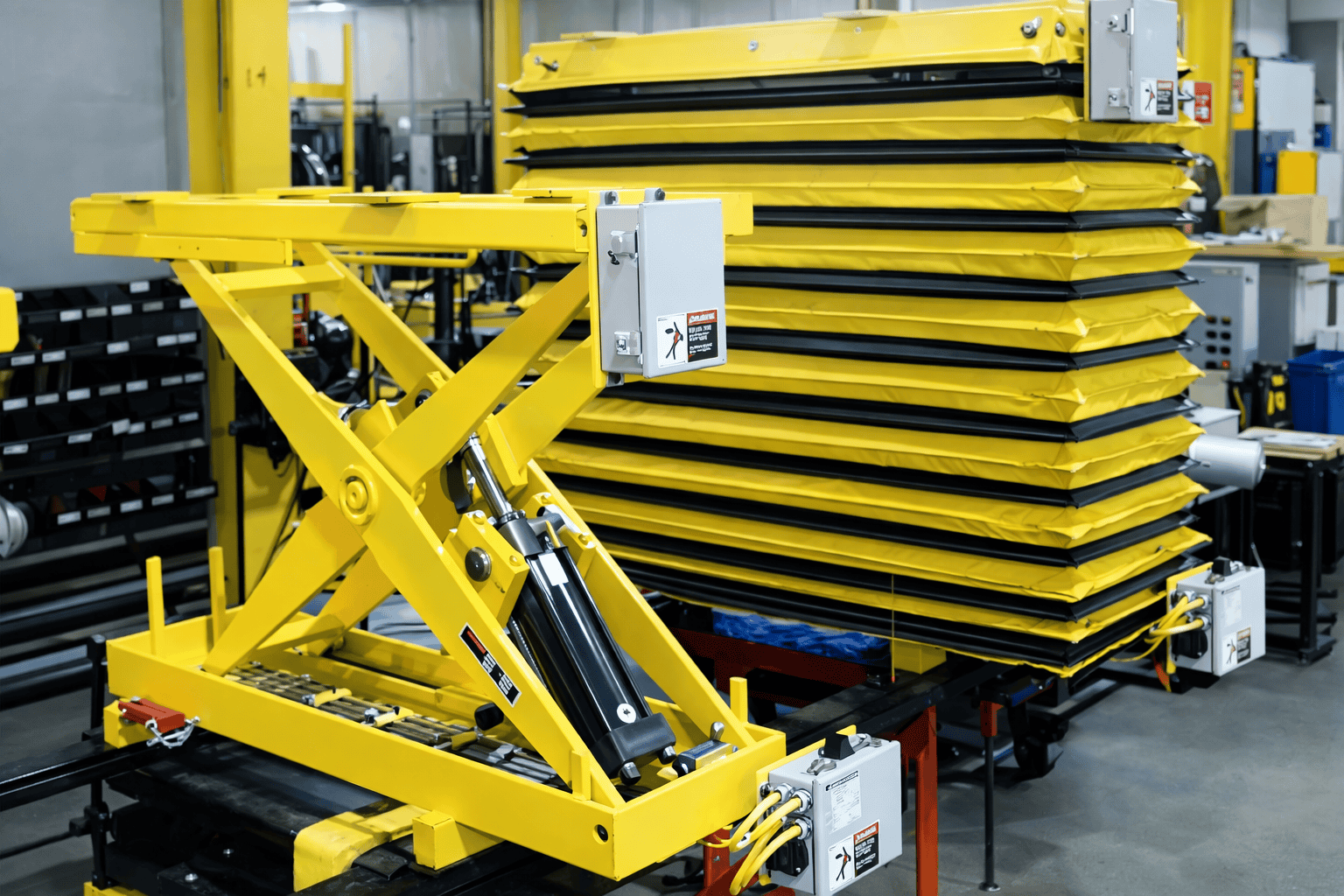

Hydraulic Lifts for Integration into AGVs

Solution: 57
Industry:Automotive Lift and Positioning Equipment
Model: Hydraulic Lifts for Integration into AGVs
Type: Carrier
Actuation: Hydraulic
Dimensions: 51" × 15"
Travel: 38"
Capacity: 2,000 lbs

Overview

Handling Specialty incorporated a new lift design into an existing AGV system for a North American automotive manufacturer. The resulting 2,000 lb capacity scissor lift was engineered to meet the existing system’s weight specifications while at the same time maintaining a limit of 1/8” deflection with the load.

Features

  • Mounted onto an existing AGV system and designed to accept the customer’s existing base and tooling.
  • DC power supply.
  • NFPA hydraulic cylinder.
  • Lubrication free.
  • Integral PLC.
  • The lift raises a vehicle engine to be bolted by operators onto a suspended overhead chassis.
