Overview

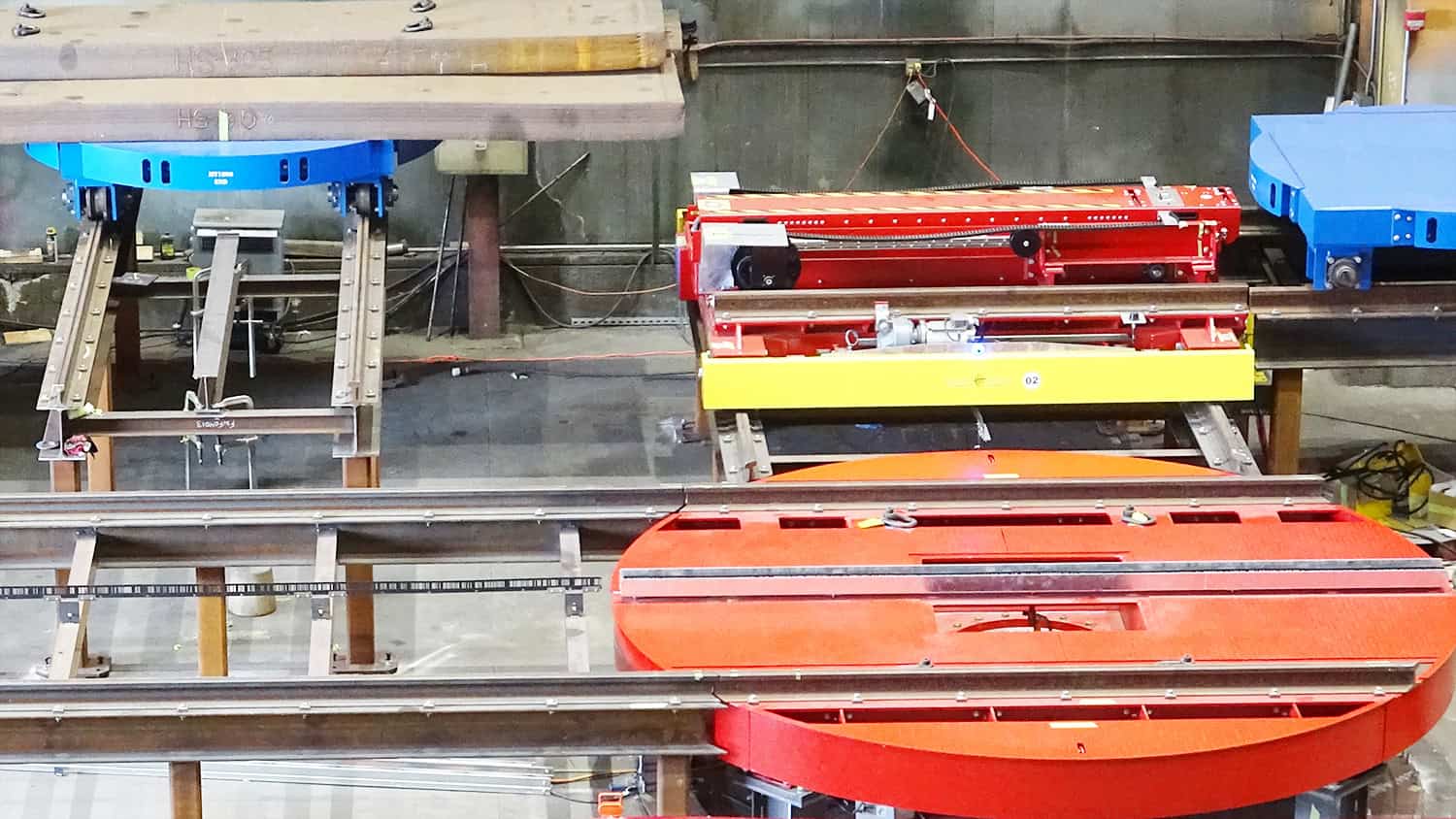

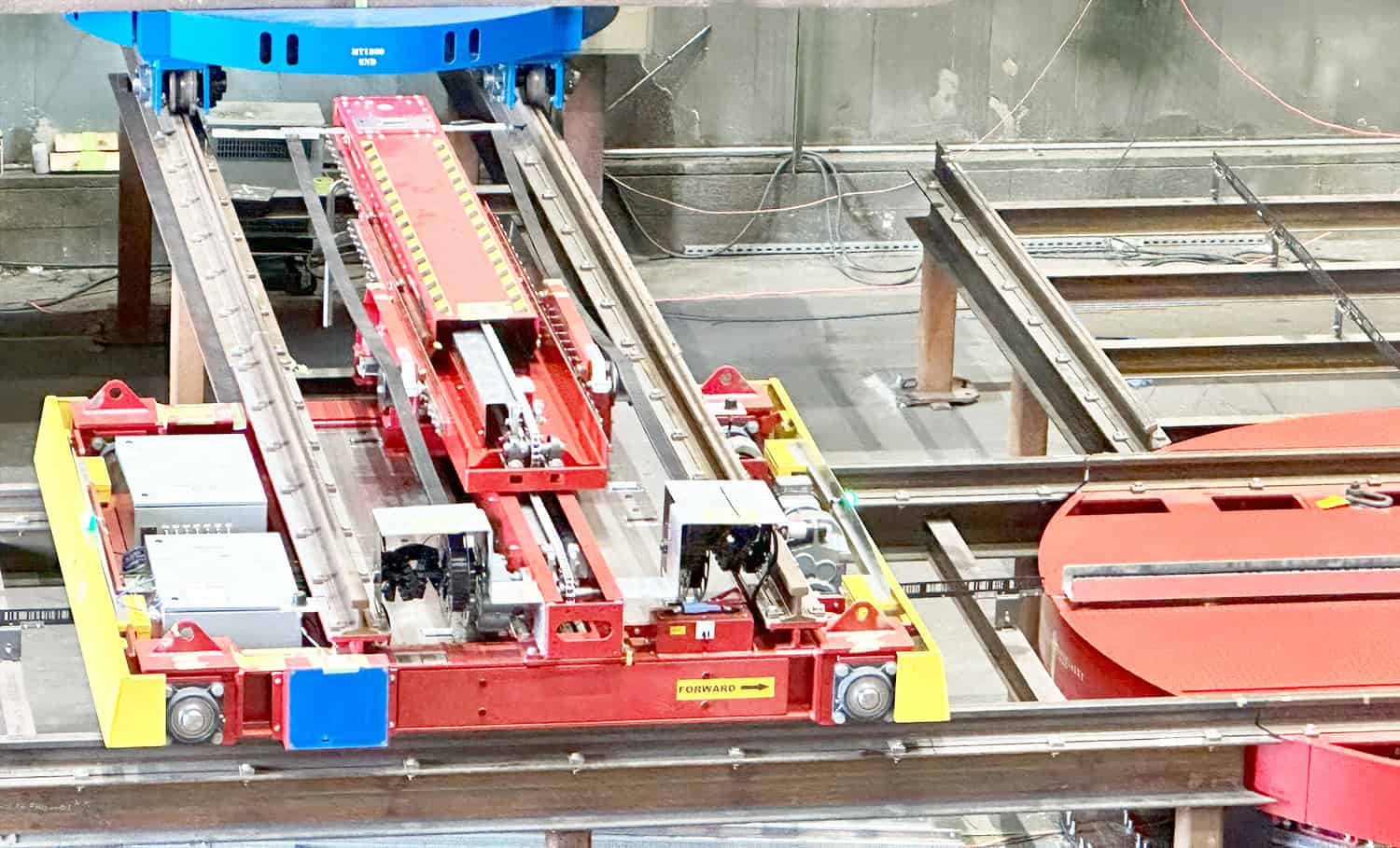

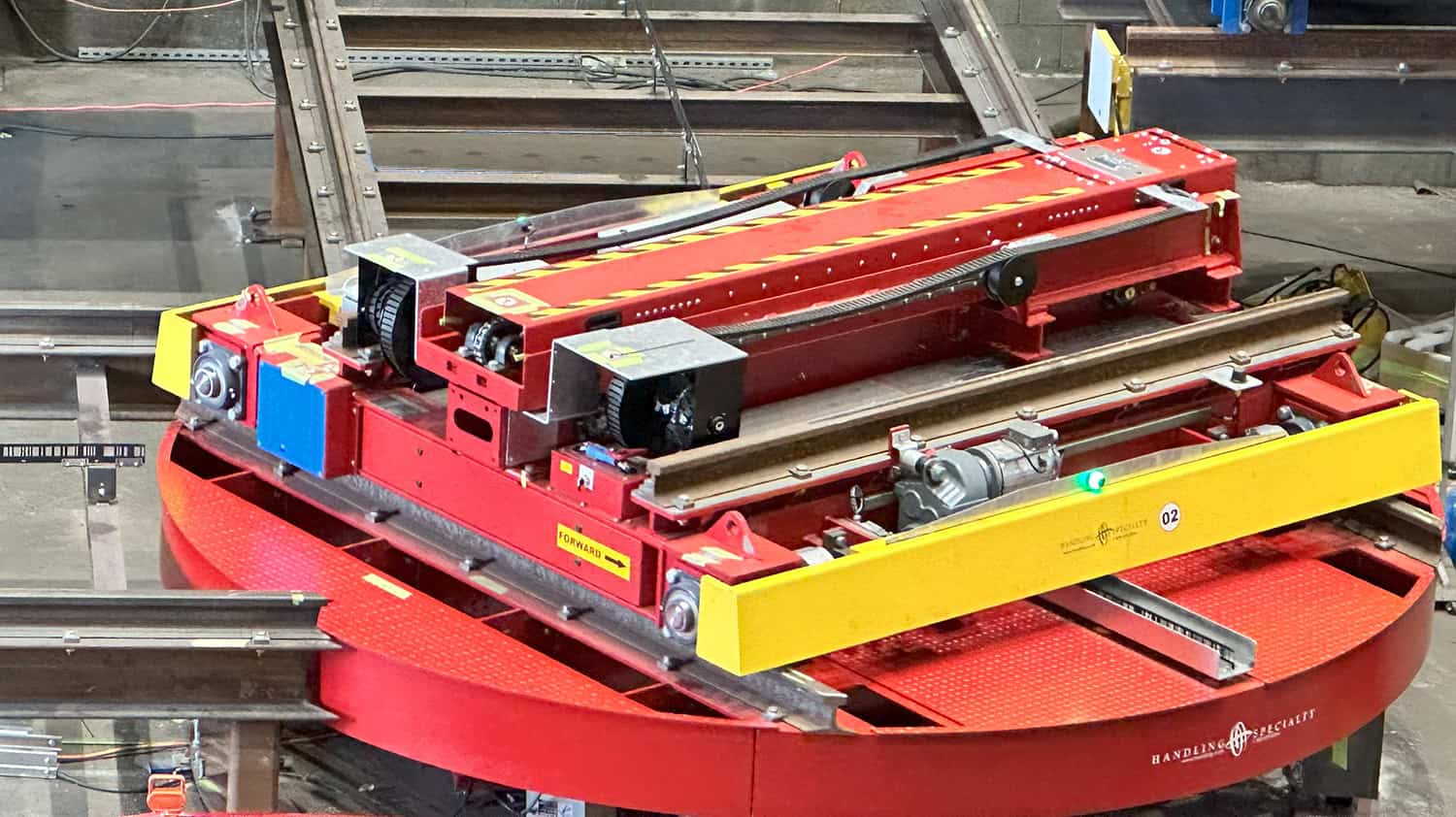

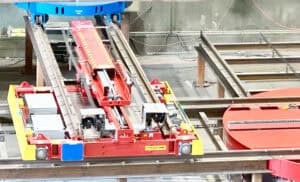

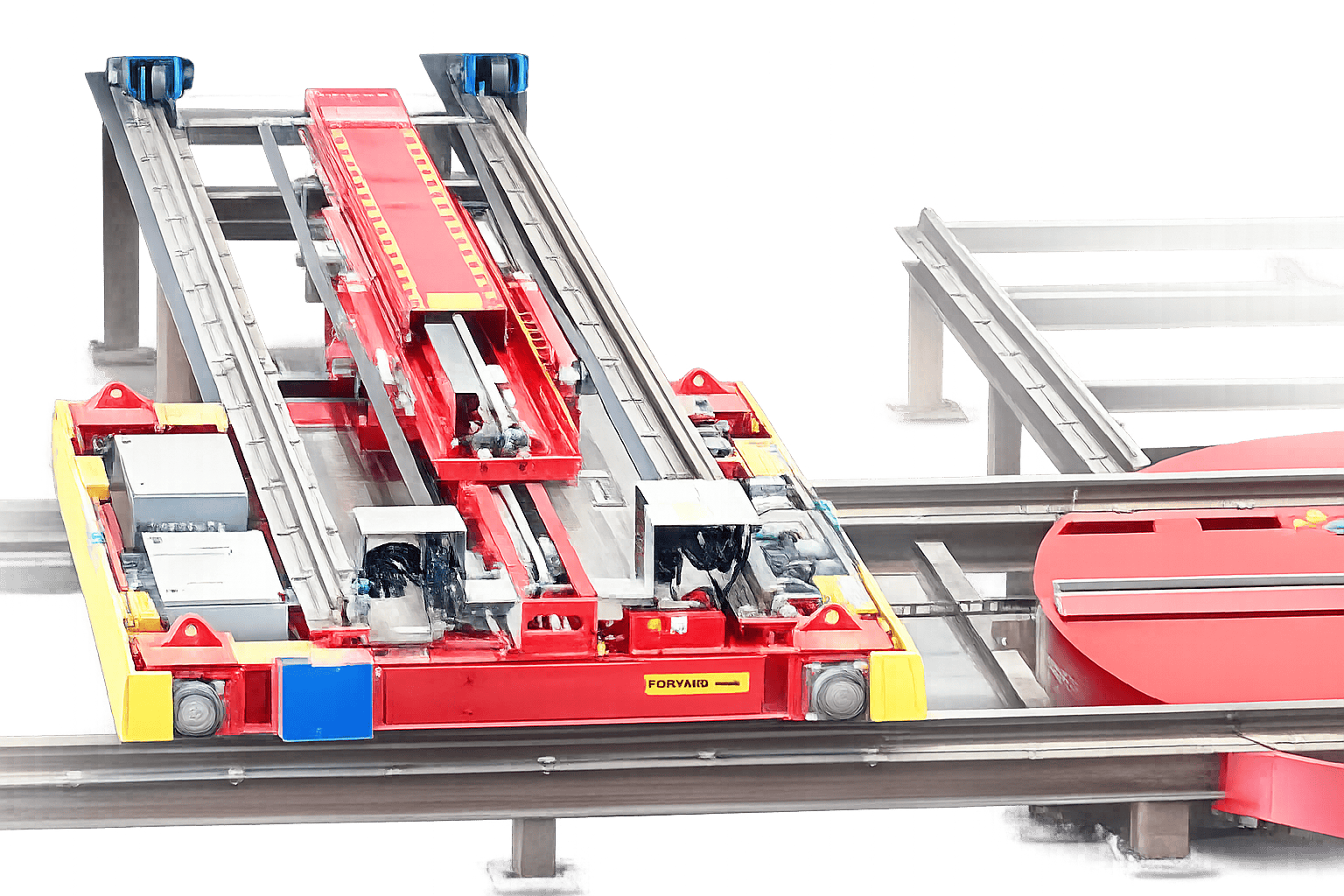

This rail guided vehicle system with turntables solution was designed and built for intermittent operation to the specifications of a leading company for the Canadian infrastructure market and includes three guided vehicles and two turntables that operate on a rail system. They were engineered to move precast concrete pipe products into and out of a kiln, and then from one workstation to the next as the pipes follow a predetermined assembly process.
Overview

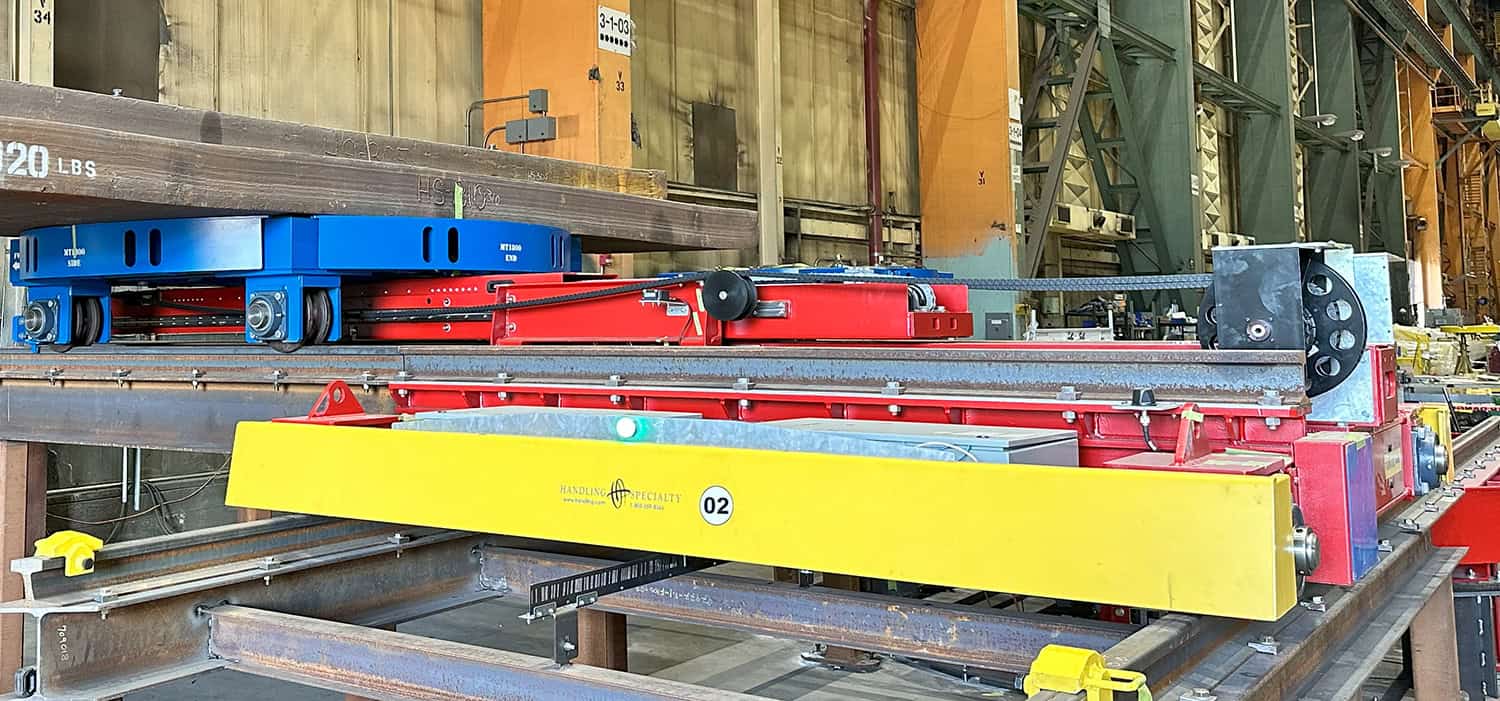

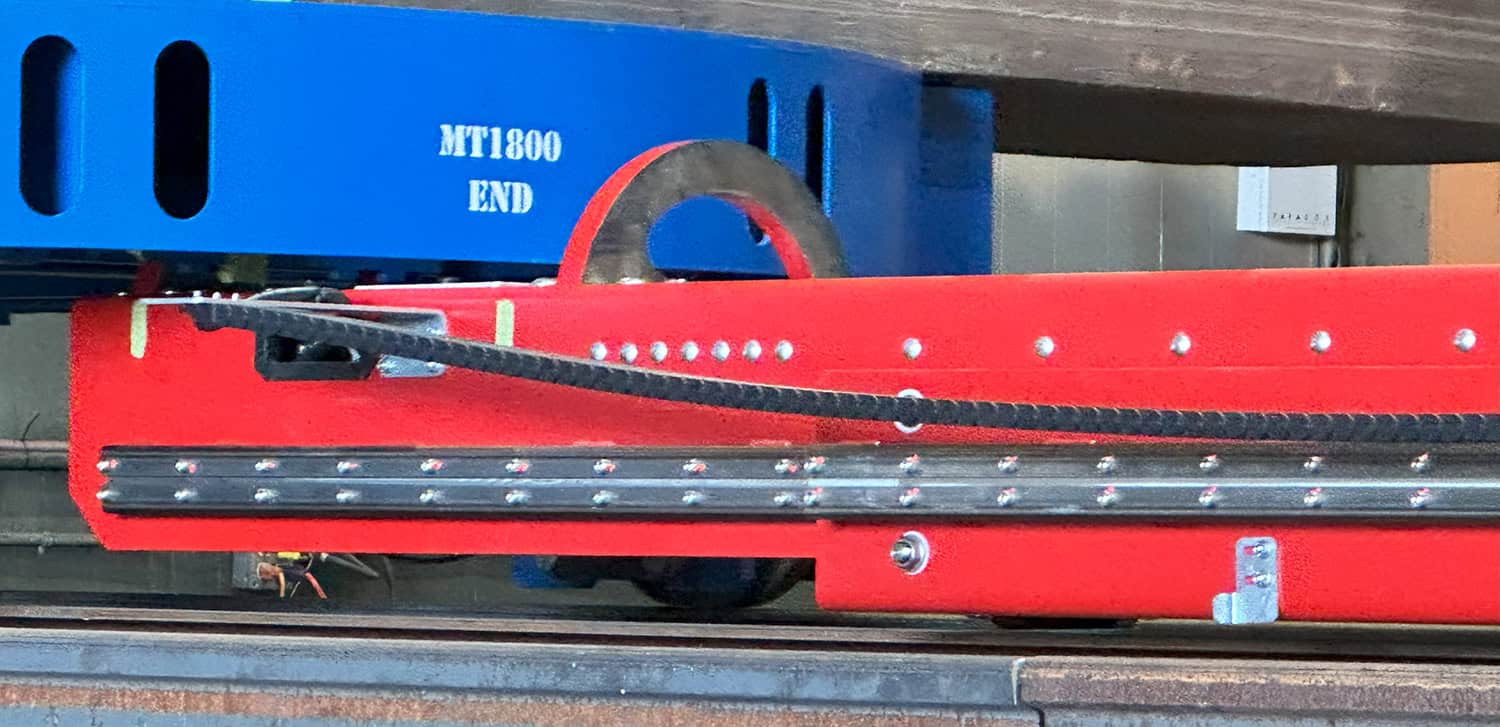

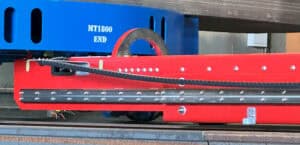

Rail Guided Vehicles
- 2 Induction charging stations for Rail Guided Vehicles
- Li-ion Batteries
- Wireless handheld controls
- 30,000 lb. capacity
Overview

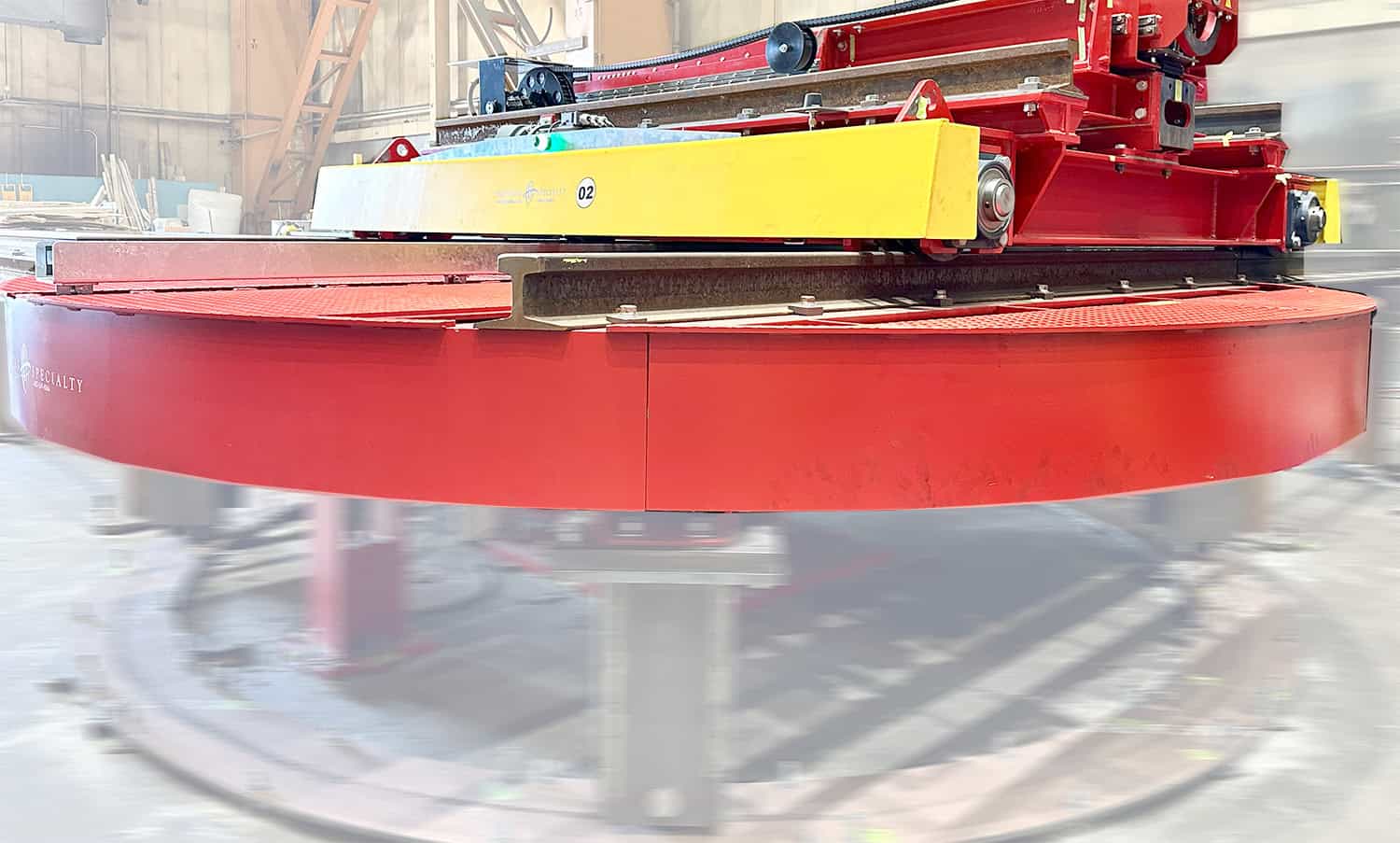

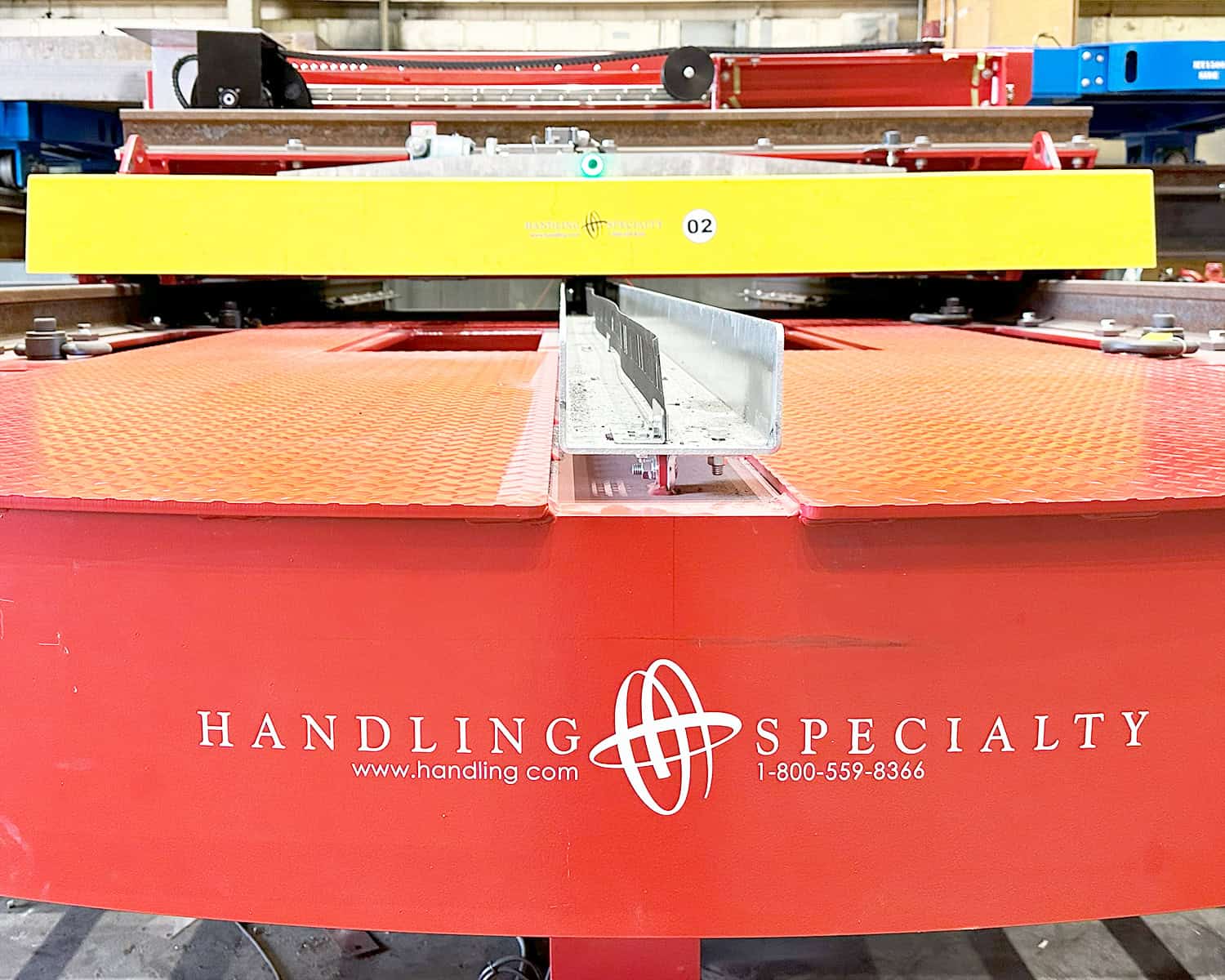

Turntables

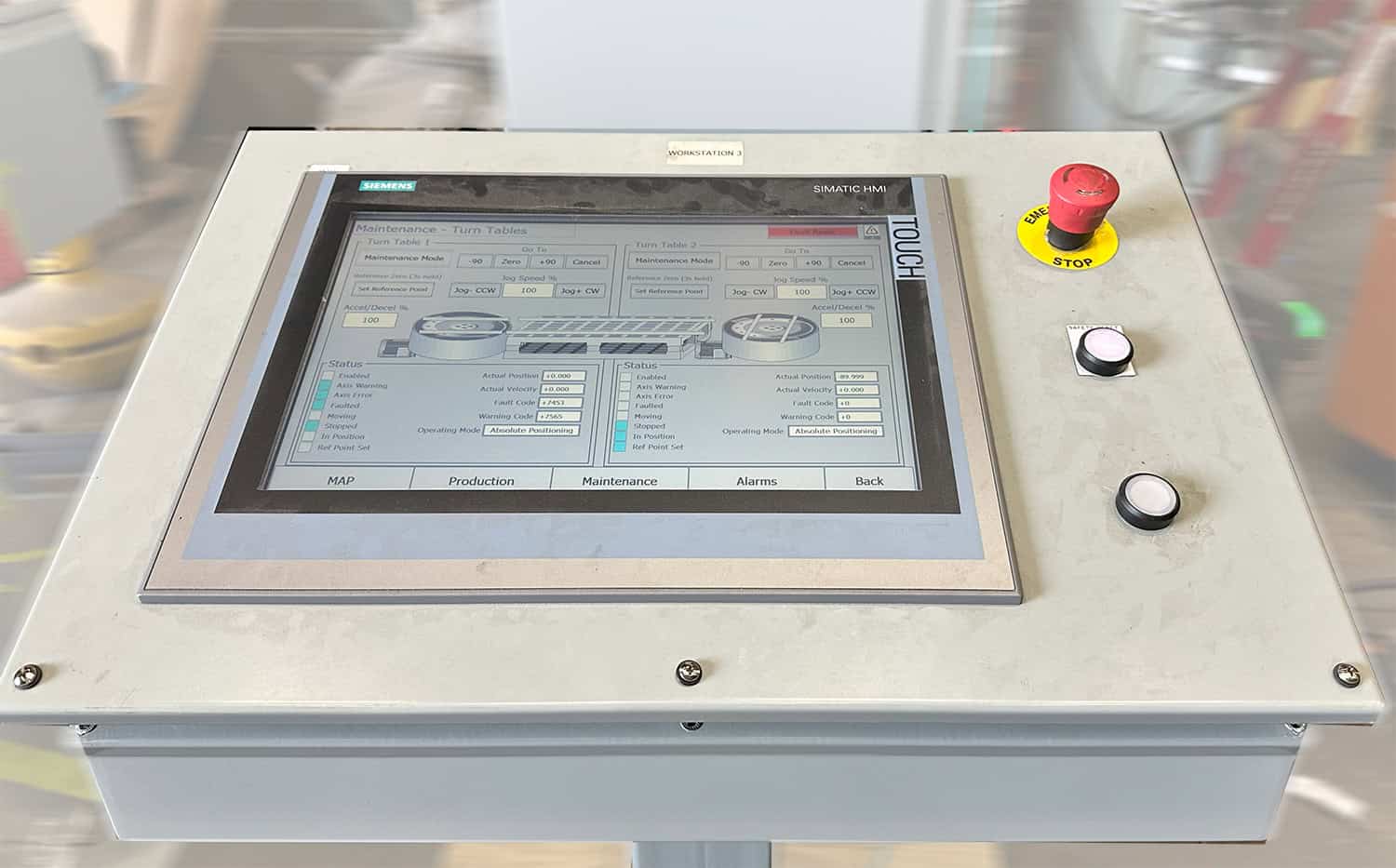

- 5 HMI stations

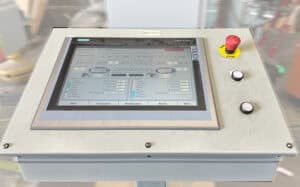

- 1 main control panel
- Three (3) RFID readers and one hundred (100) RFID tags
- 2 workstation Stops
- 4 scanners
- Lagged to floor
- 66,000 lb. capacity
- 157″ diameter
