SCM – Railway Lifting Jacks
SCM – Railway Lifting Jacks

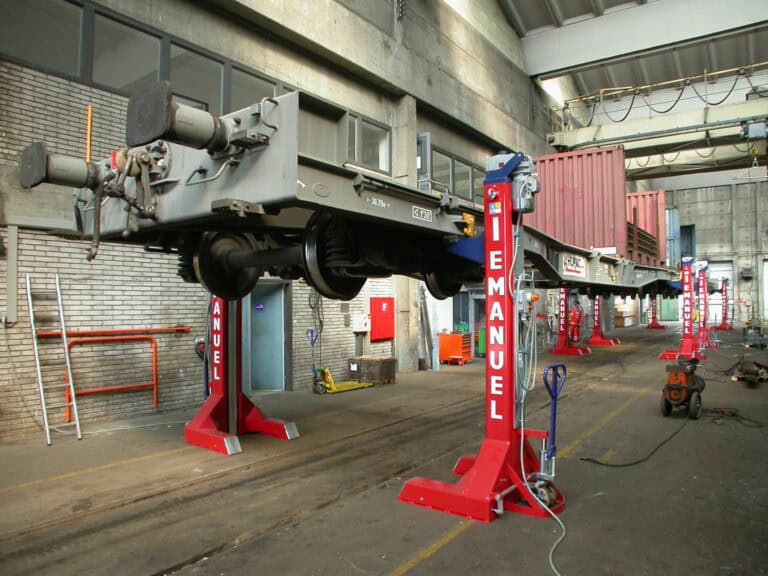

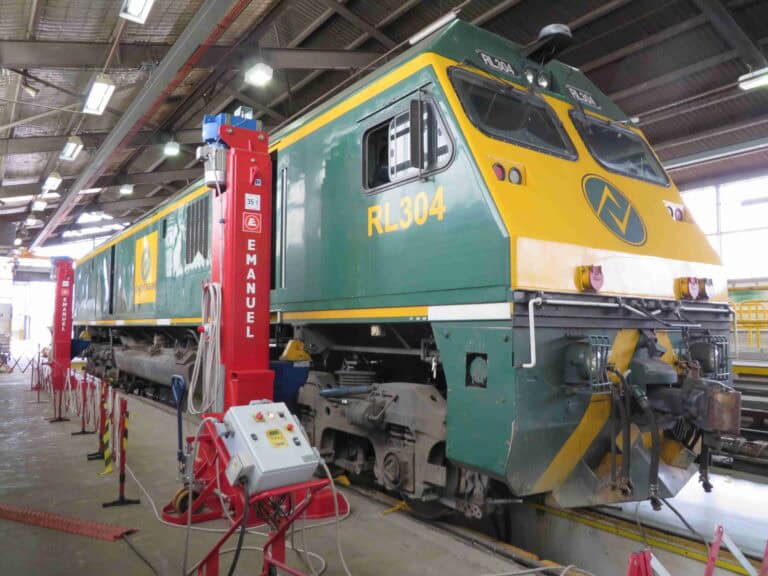

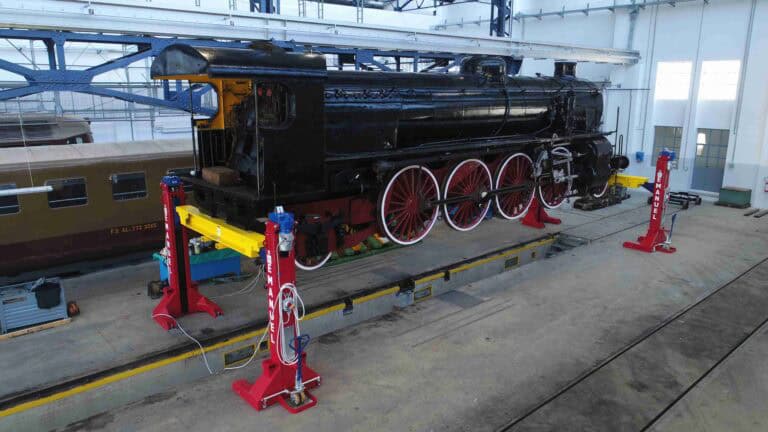

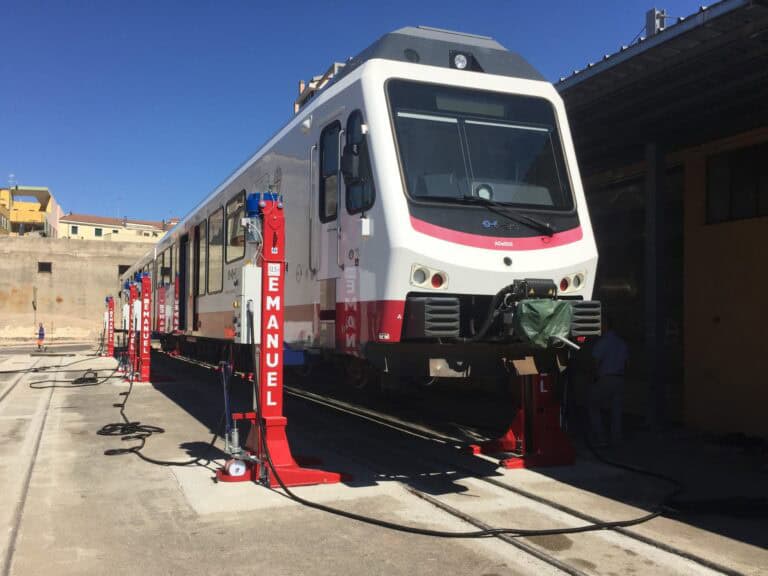

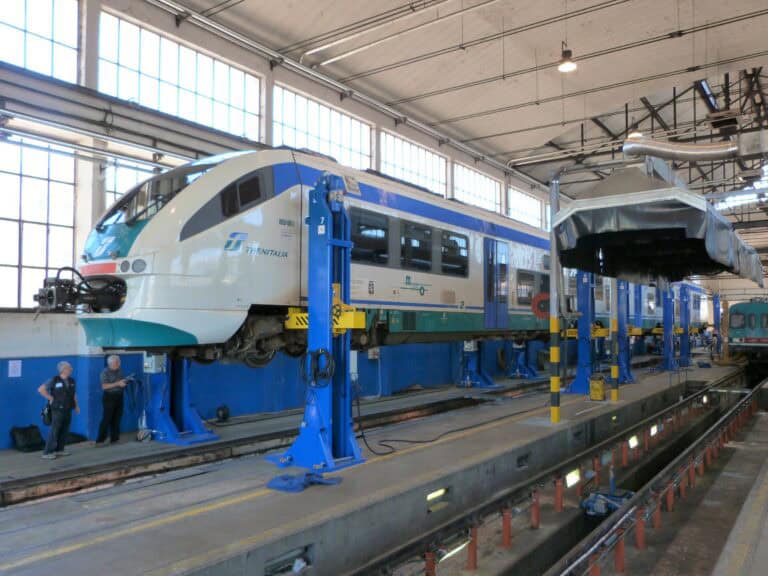

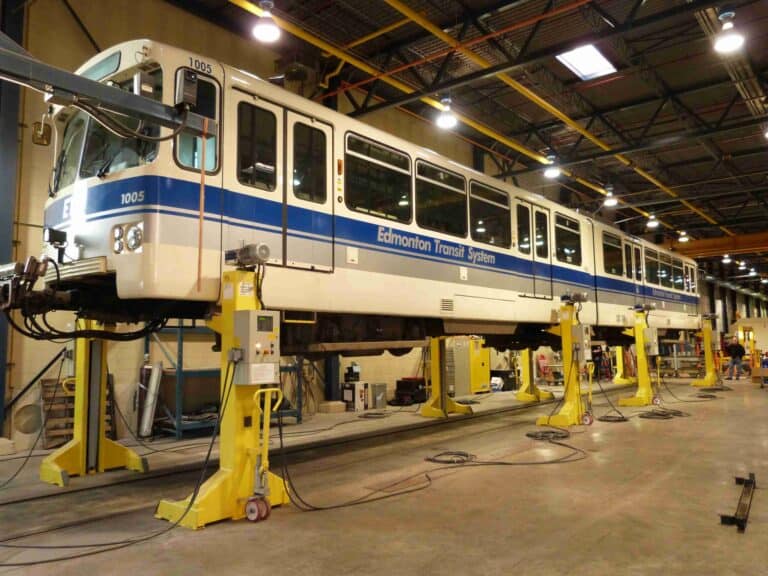

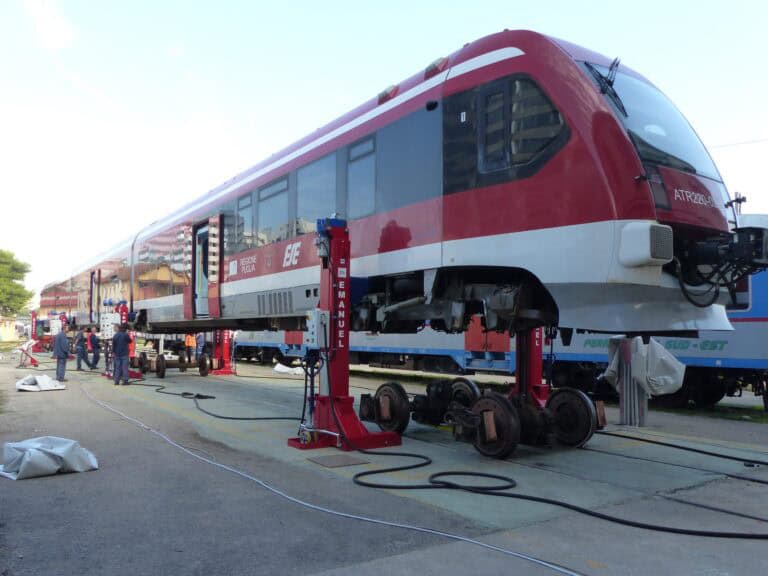

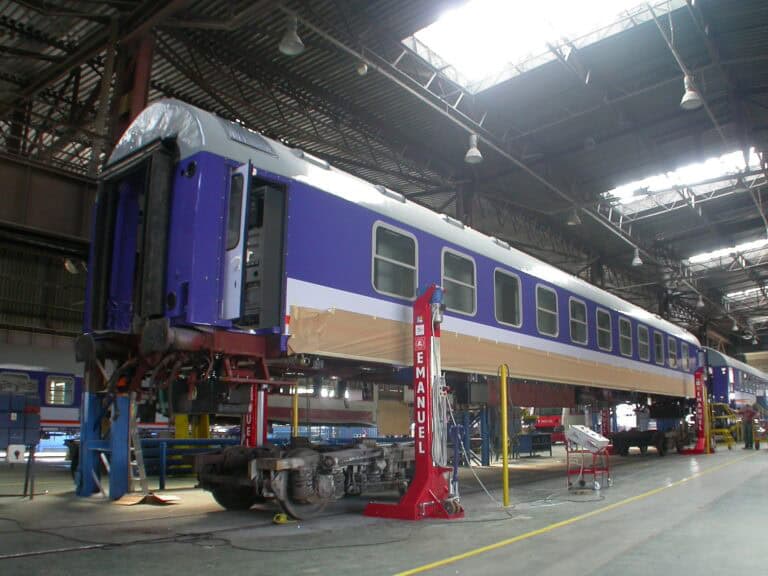

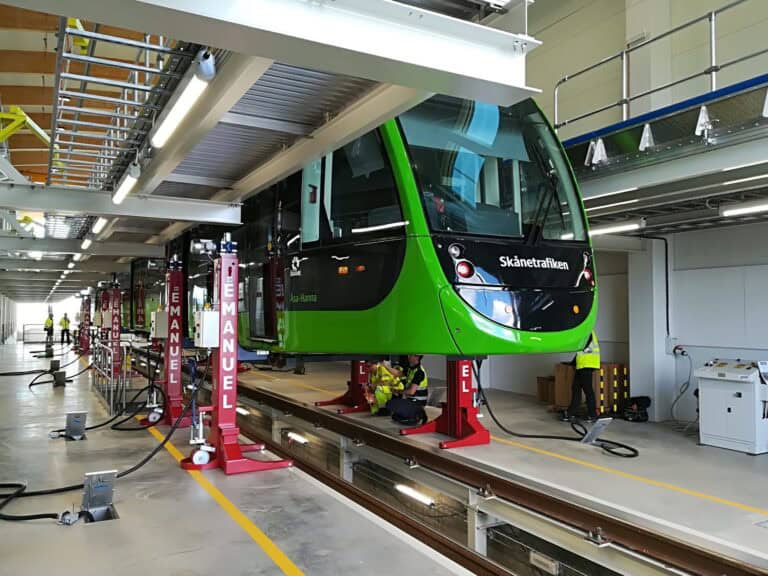

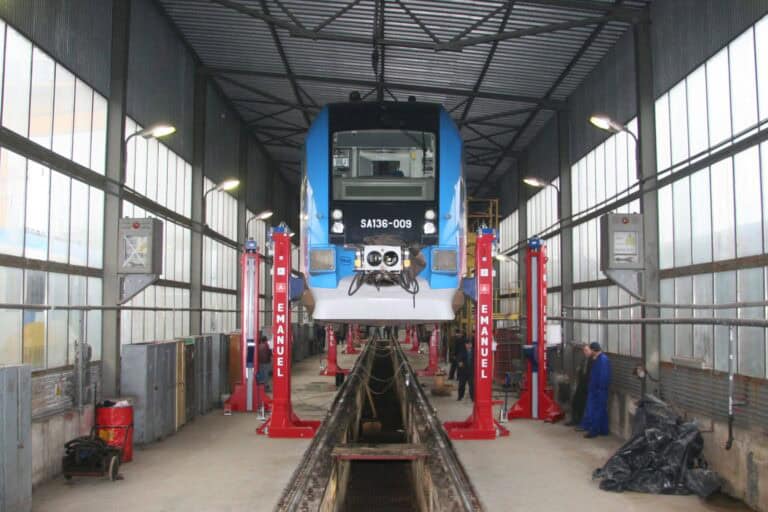

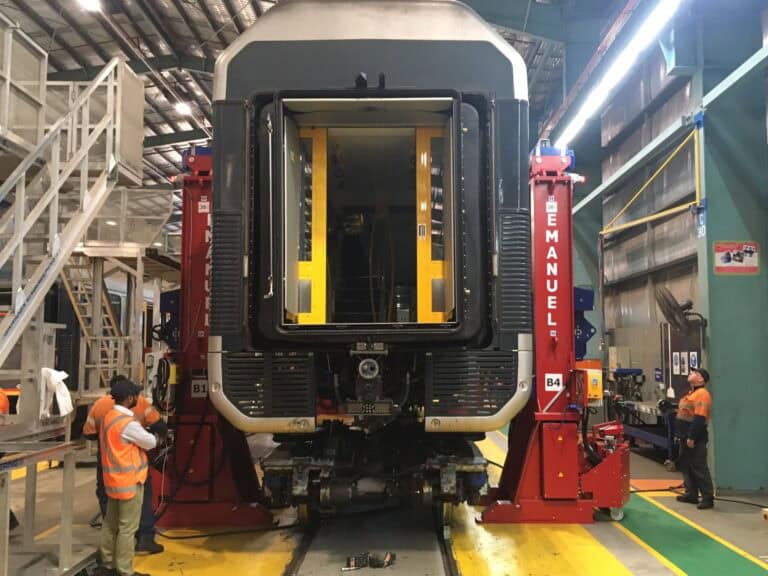

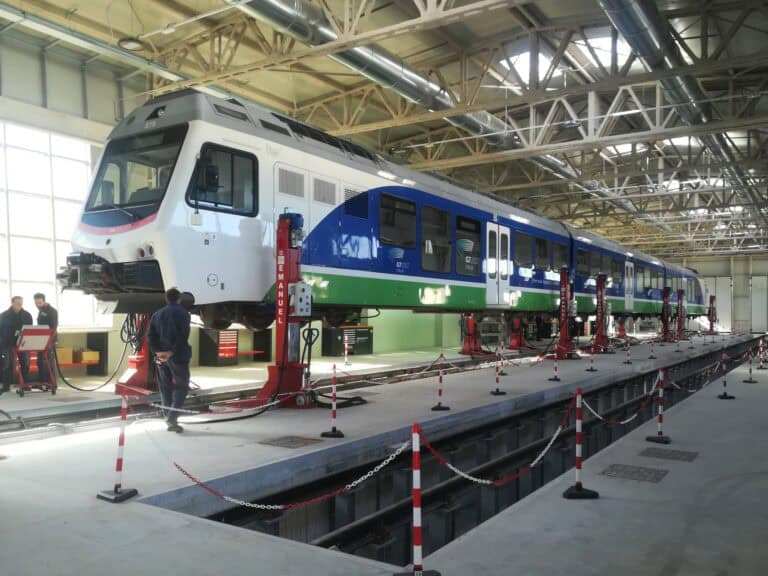

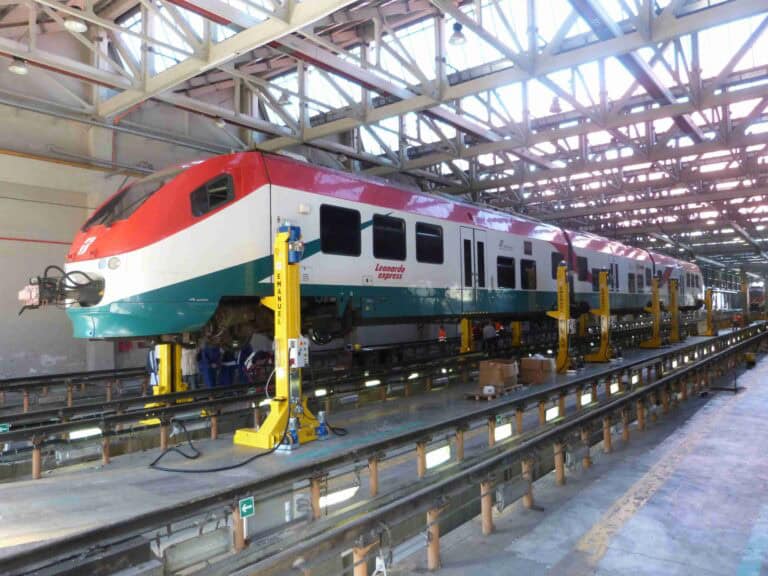

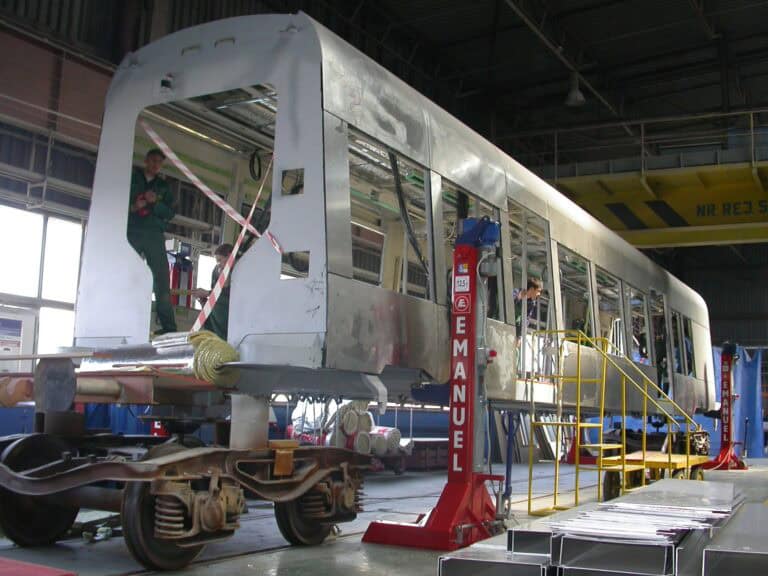

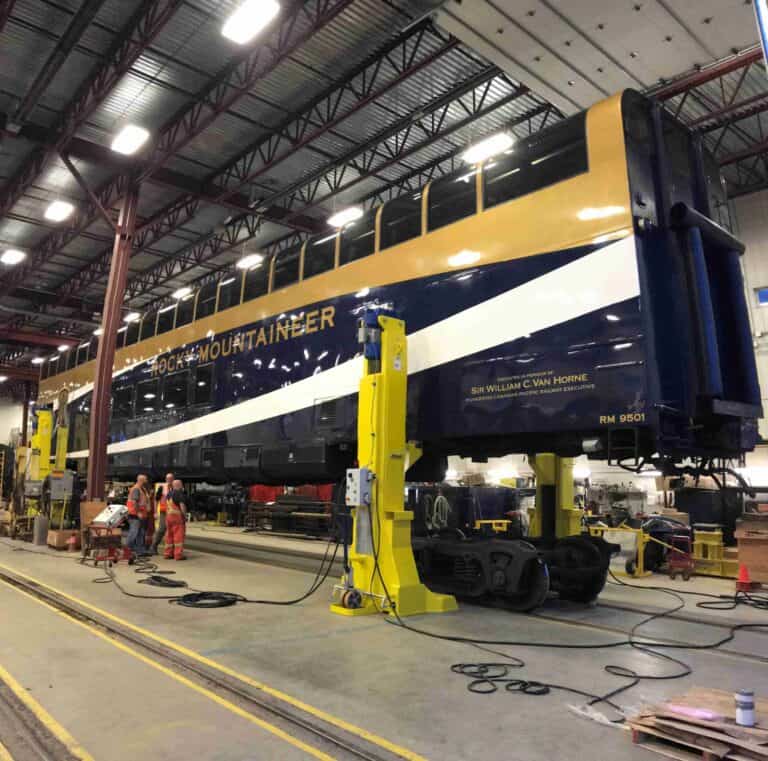

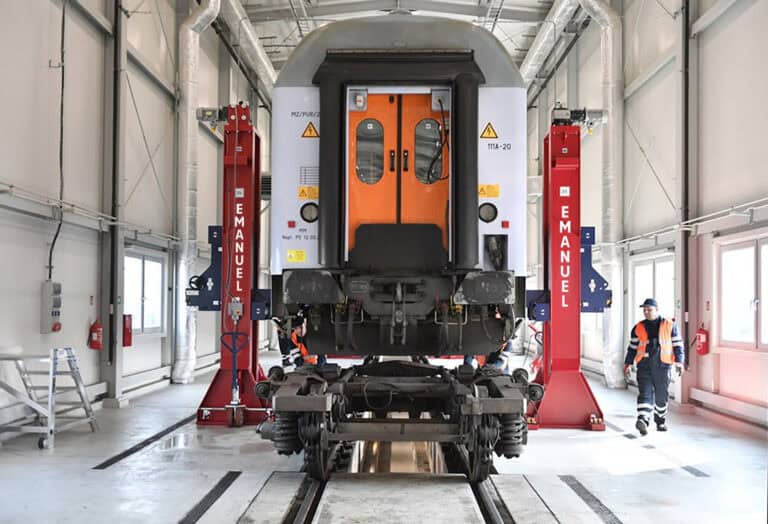

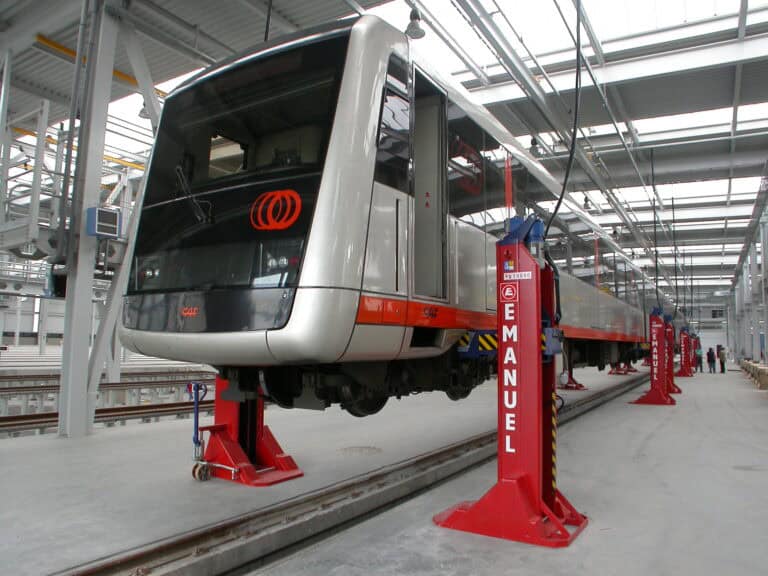

The SCM railway lifting jacks are often analyzed and personalized of specific client requirements. Our railways mobile lifting jacks are available in different standard models depending on the lifting capacity, starting from 5,5 Ton to 50 Ton.
SCM series columns can be configured from 4 to 64 columns, with fixed or movable anvil.
In conformity with MACHINE DIRECTIVE 2006/42/CE and approved according to the European EN 1493.
Technical Features
VERSIONS
Our SCM railway lifting jacks are available in 2 different versions:
- Fixed anvil,
- Movable anvil
The main differences between mobile lifting jacks with movable and fixed anvil are:
- Fixed anvil jacks are largely used and more economical. In fact, the structure that is built around the anvil is more compact and simpler.
- Weight: movable anvil jacks are heavier given their larger structure. The fixed anvil jacks are easier to handle and move around even at intermediate distances.
- Structure: the jacks with movable anvil have larger structure, instead fixed anvil jacks are more compact.
On the other hand, movable anvil jacks are often required in workshops where the maintenance is usually carried on the same type of train. Once the jacks are put in place the operators don’t need to move the lifts anymore as the lifting points don’t change.
Also, movable anvil jacks are ideal for unloading cars from trailers.

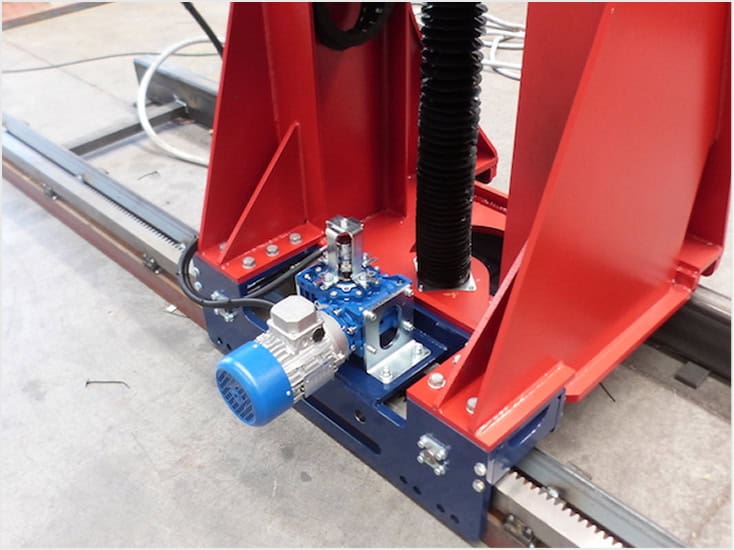

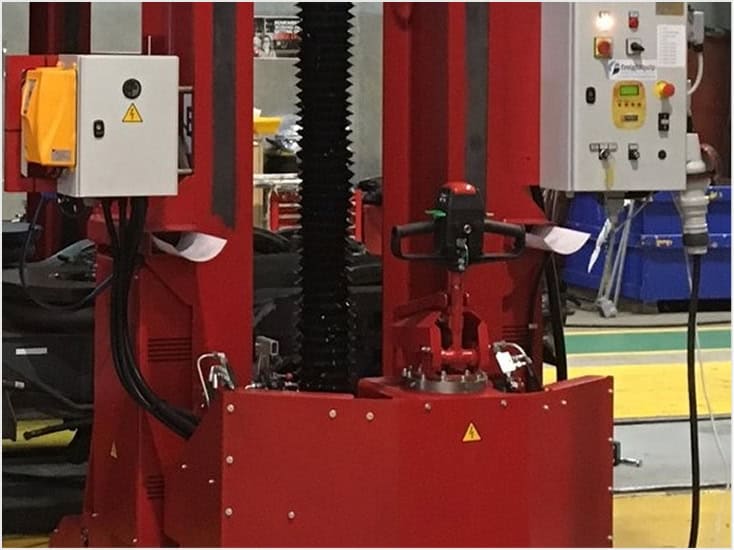

Our electromechanical lifting system is composed by:
- Motoreducer
- Irreversable trapezoidal screw
- Main nut
- Safety nut

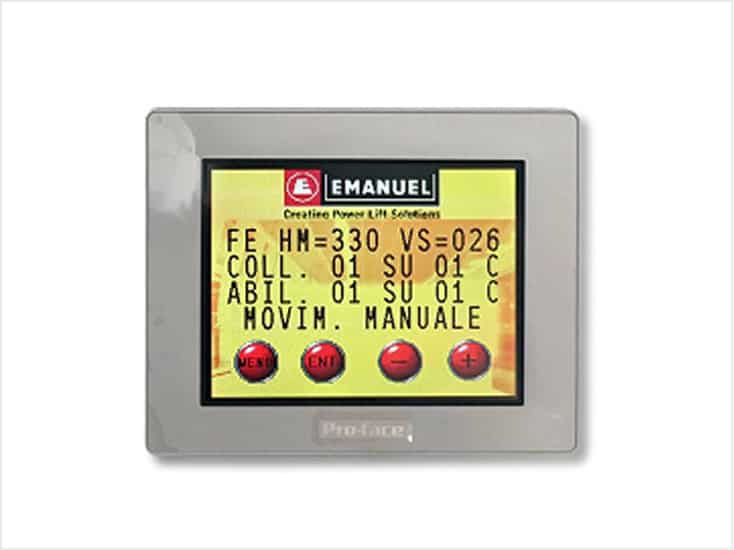

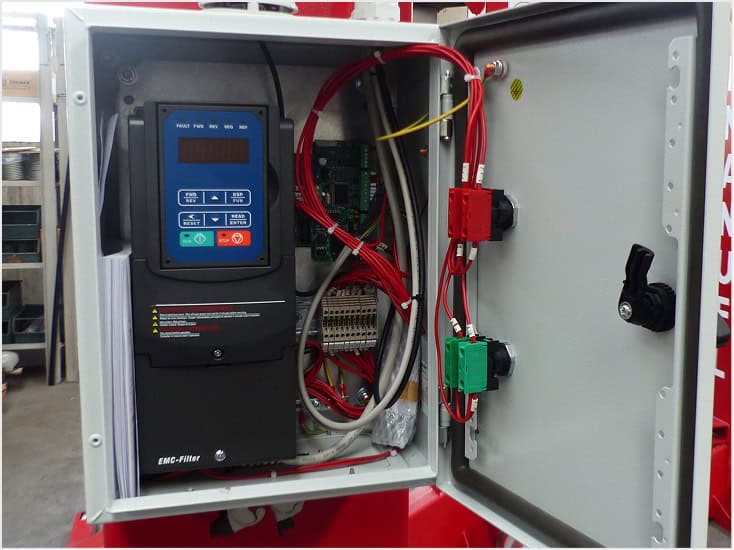

ELECTRONIC SYSTEMS
The temporary – dummy bogie is provided with brakes that can be used when the CS is positioned in the stationing area.
STANDARD – It is able to control up to 8 columns. The most practical and economical configuration.
EXPANDABLE – It is able to control up to 16 columns (8+8). Equipped with two control units, it comes with practicality of the Standard System while having the possibility to create two distinct lifting sets.
SERIAL – Capable of controlling up to 64 columns. The most complete and advanced, designed for maximum flexibility is able to expand the lifting set with no modification required. It’s loop connection system decreses the total lenght of the cables necessary and limits the crossing of the cables over the rail to only two.
A few of the characteristics of our electronic systems:
- Event storing and recording (Work time, indication of the events occurred and failures, etc.).
- Remote assistance: using an internet connection it is possible run to a complete check of system: electronic and electromechanical tests and checks, verifying failures, analyzing work procedures.
- Self-programmed maintenance.
