Overview

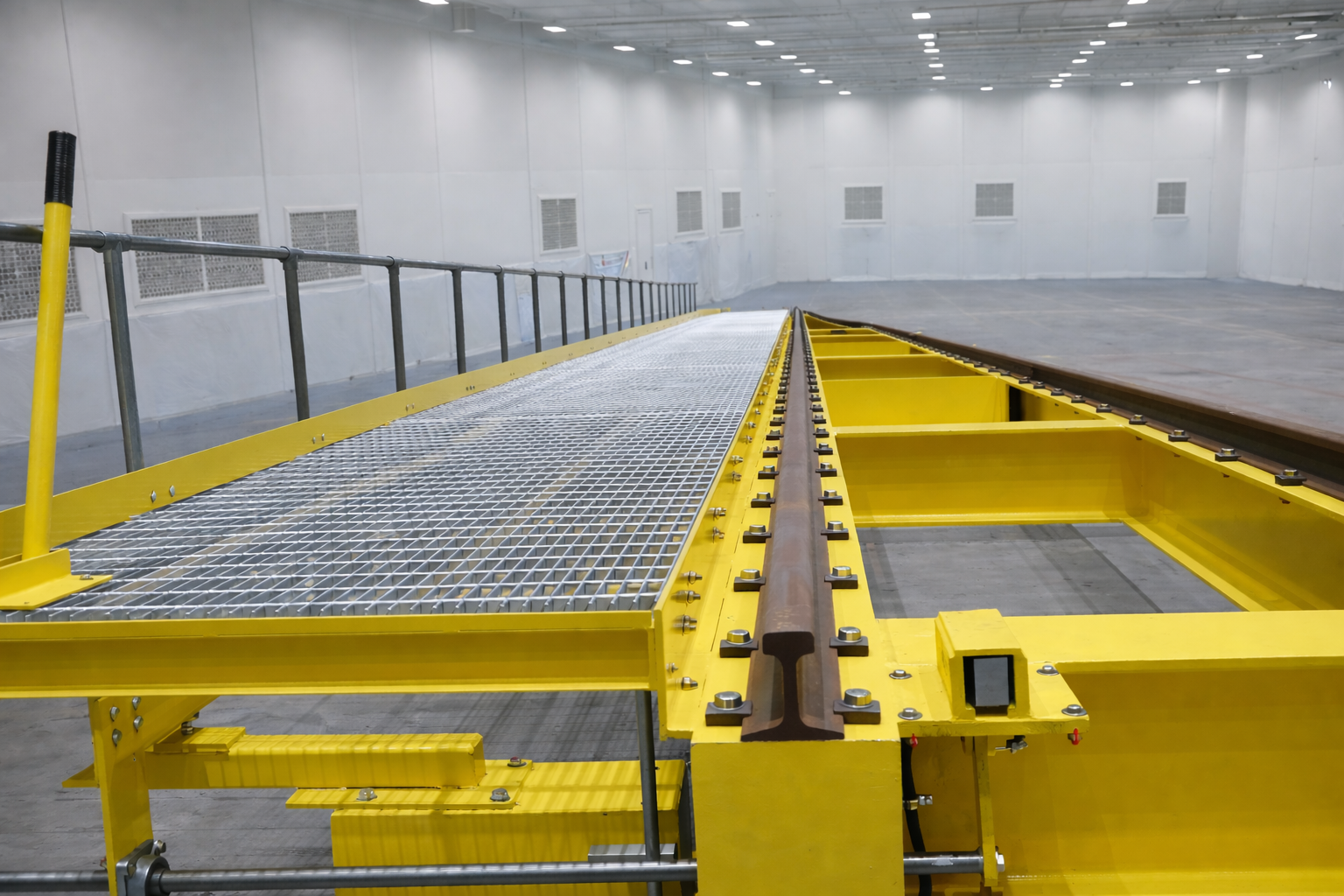

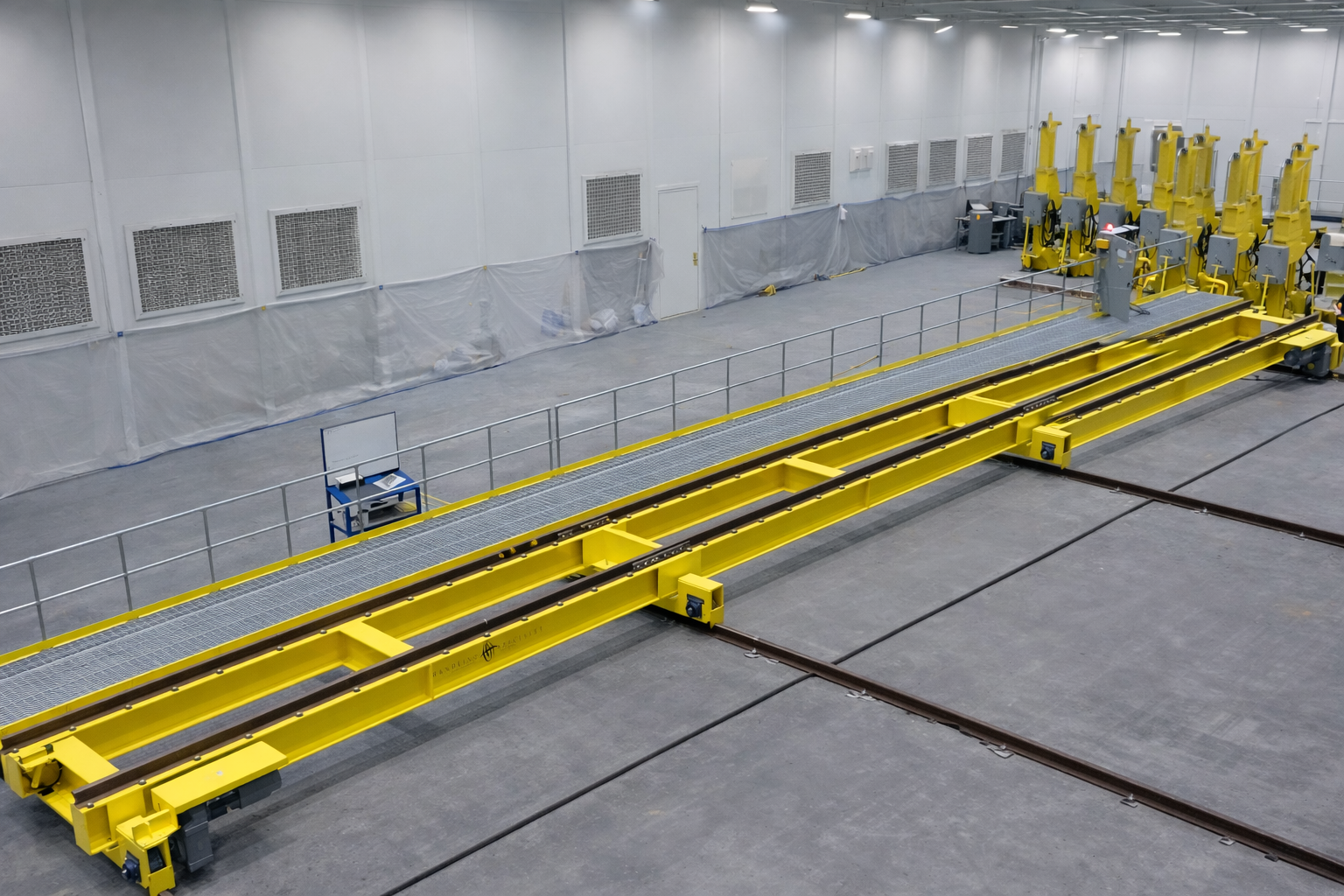

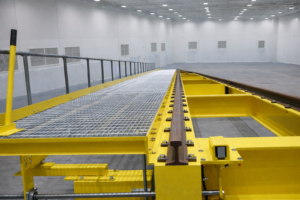

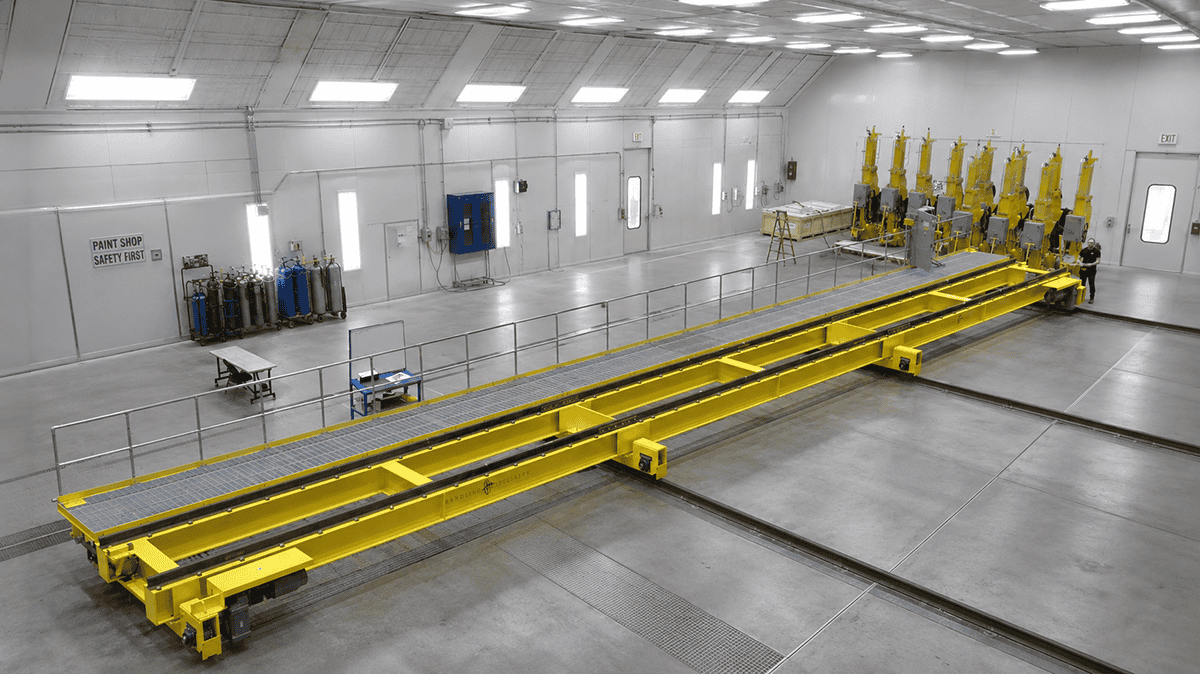

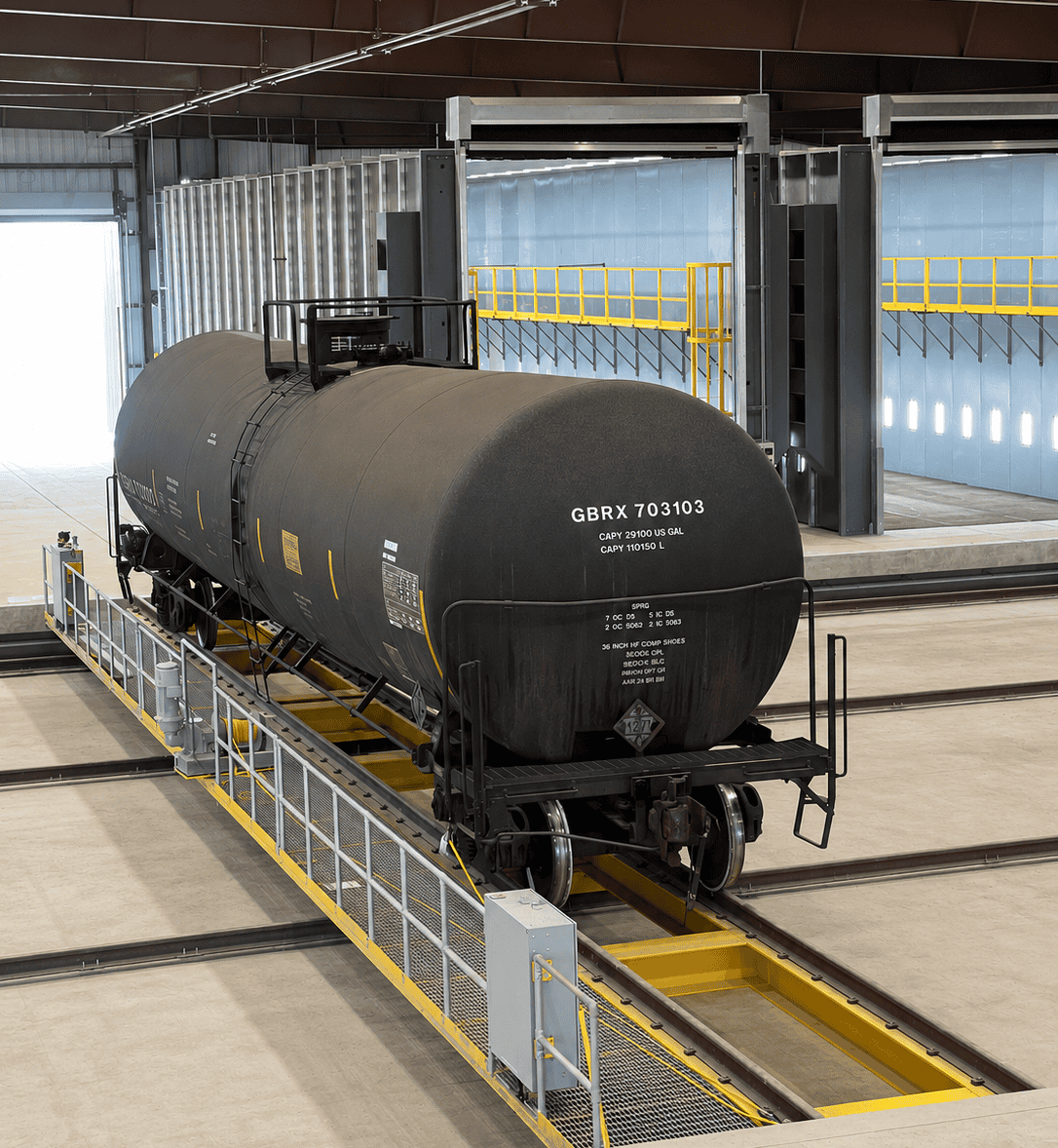

This 100-ton Rolling Stock Transfer Table for rail maintenance will be used to shift rail vehicles between six (6) parallel tracks from incoming tracks in a new paint shop. It includes a motor starter panel mounted at one end with control panel, a walkway on one side of track, locking pockets, bumpers and bus bar power supply with PVC cover. This table will traverse 220 feet driven by a push button station which includes a selector switch for slow/fast speeds.
Features
- Electromechanical disc brake on drive motor

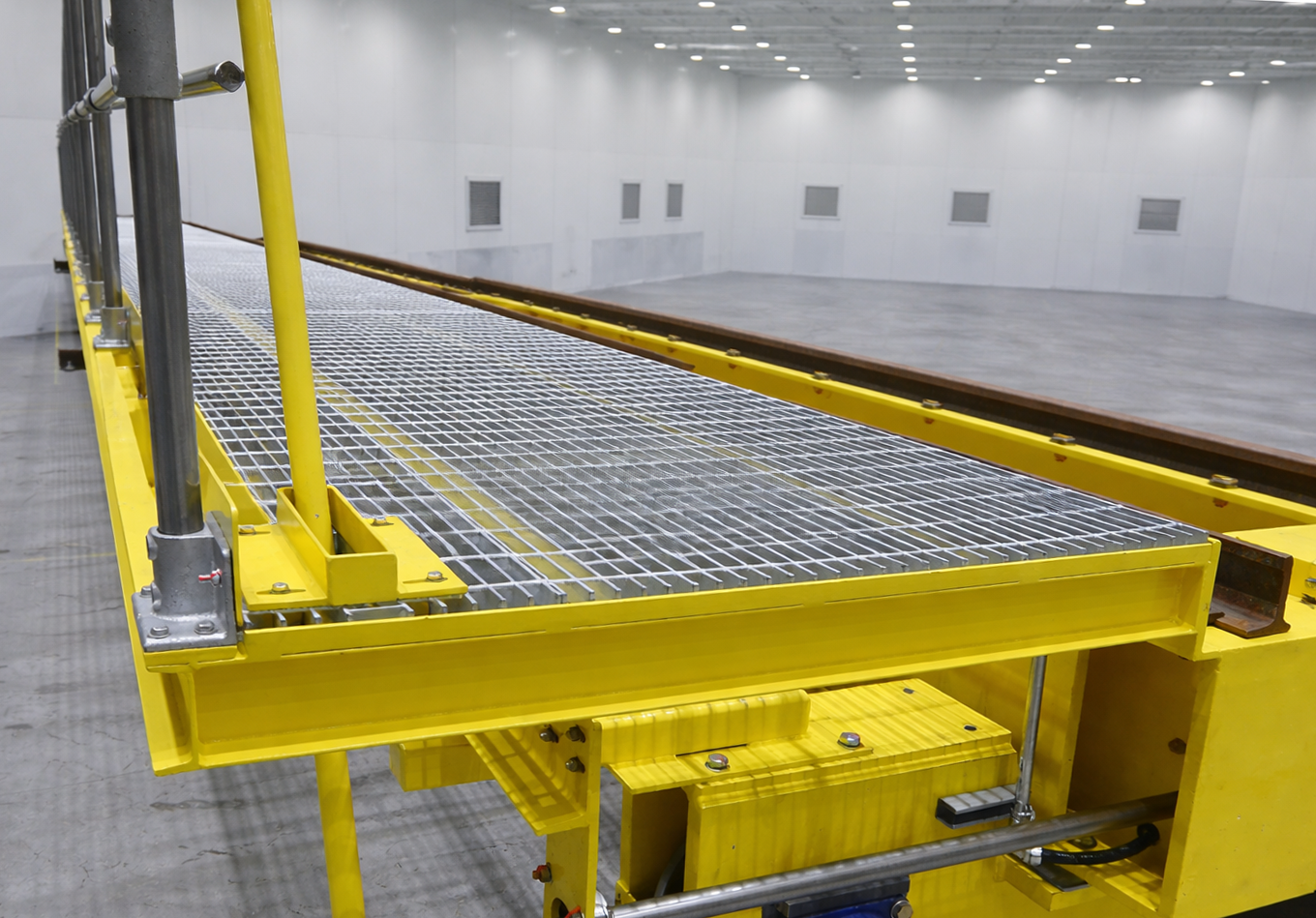

- 4-foot-wide walkway with hand rails
- Equipped with locking bars at both ends
- Variable, 2 to 60 feet / min
- Controls
